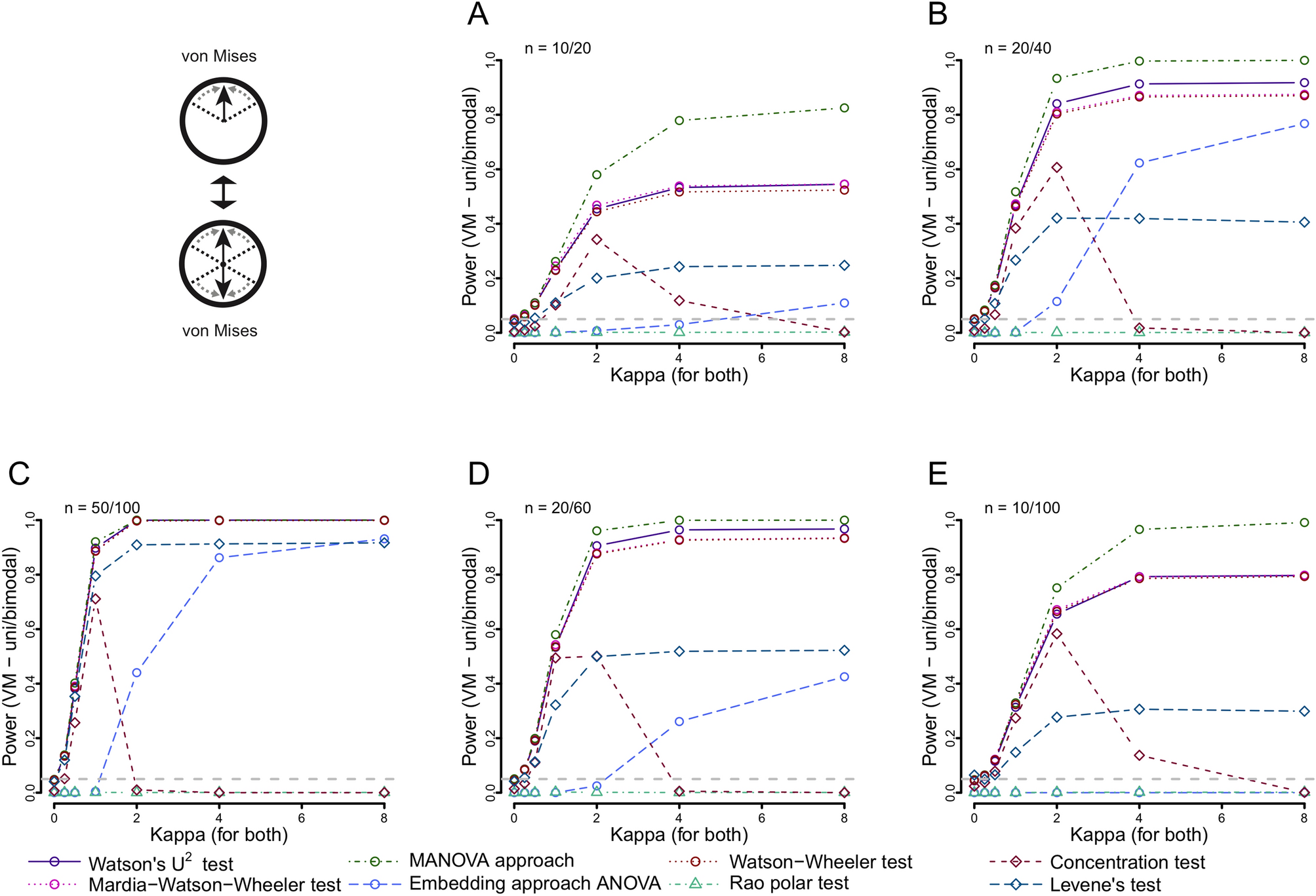

Figure 5
From: Advice on comparing two independent samples of circular data in biology
Power of all included tests when comparing von Mises distributions of differing number of modes (unimodal and axially bimodal) using different sample sizes: 10 and 20 (A), 20 and 40 (B), 50 and 100 (C), 20 and 60 (D) and 10 and 100 (E). The concentration (κ) of both increases from 0 to 8.
