Figure 3

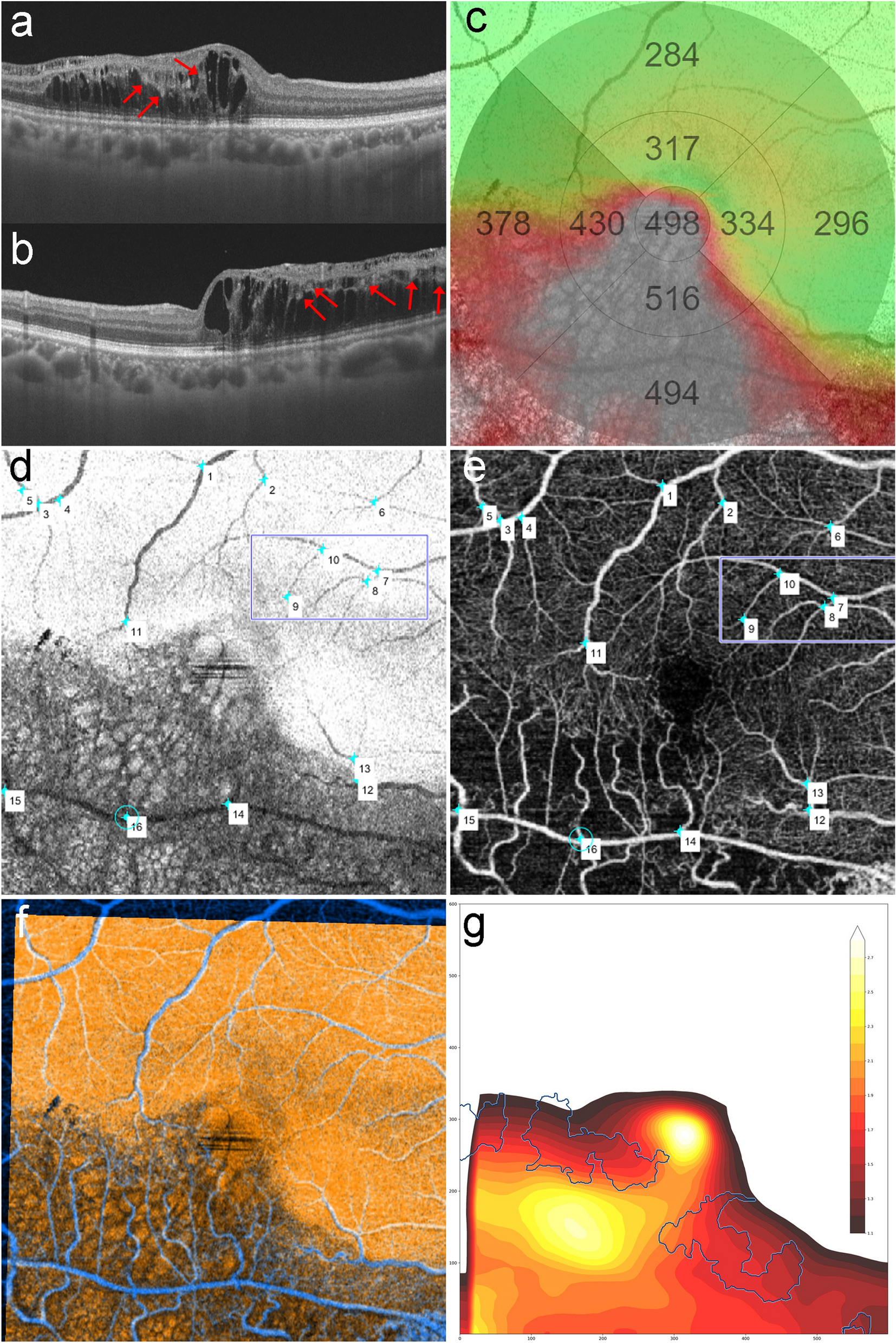

Alignment of en-face optical coherence tomography at recurrence to baseline en-face optical coherence tomographic angiography to visualize the territory of macular edema. (a–c) The patient noted in Fig. 2 showed macular edema (ME) recurrence at 6 months after baseline. Red arrows indicate capillary congestion of the deep capillary plexus (DCP-C) surrounded by ME in horizontal (a) and vertical (b) B-scan optical coherence tomography (OCT). In quantitatively analyzing the ratio of increased retinal thickness (RIRT) on a pixel-by-pixel basis, an alignment is required to correct for relative eye movement between two visits. (d) Sixteen control points were selected at the apparent bifurcation of the en-face OCT image at the recurrence. (e) Superficial capillary plexus OCT angiography (OCTA) at baseline presents selected control points at the same bifurcation. Matlab software calculated the geometric relationship between two images in a 3 × 3 affine transformation matrix through the coordinates of two sets of control points. (f) The color of the en-face OCT was designated as orange after the transformation. The OCTA at baseline was designated as blue and merged with the transformed en-face OCT image to confirm the alignment. By applying the same matrix to the macular thickness color map at recurrence, it is possible to analyze the RIRT in pixel units. (g) The RIRT of each pixel was calculated, and the territory of ME was plotted with a contour plot. Python software assigned different colors to pixels whose ratio increased by 1.1 or more (assigned colors are indicated in a color bar at the upper right corner). Then, the boundary of DCP-C was covered with blue lines. The maximum RIRT was 2.833 at the fovea; DCP-C was juxtaposed with the ME territory and two local maxima.
