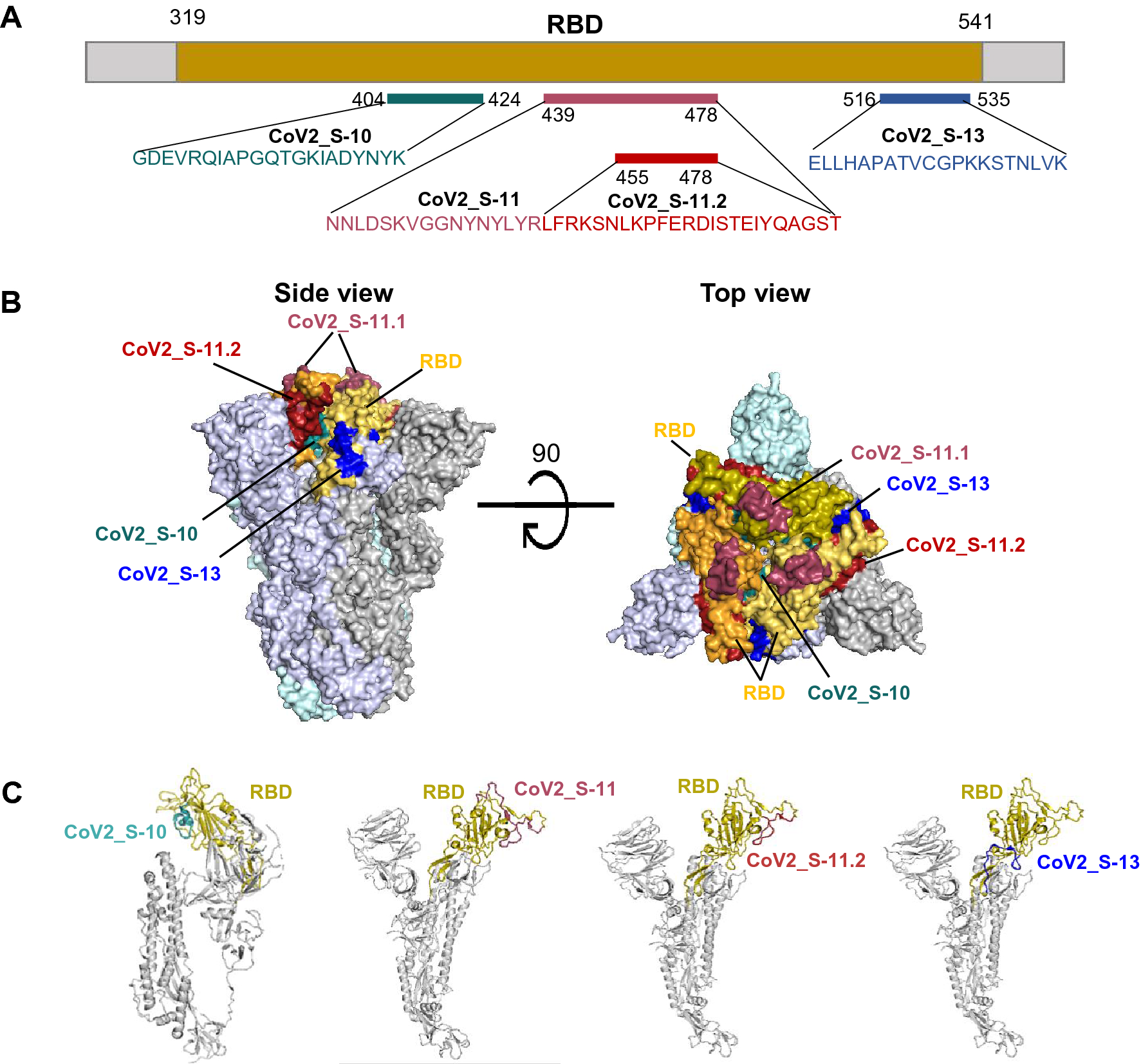

Sequences and locations of the immunodominant B cell epitopes in the RBD. (A) Sequences and positions of the three immunodominant epitopes in the RBD. (B) Surface representation of the immunodominant epitopes on the SARS-CoV-2 S trimer. (C) Locations of the immunodominant epitopes of the SARS-CoV-2 S monomer. The epitopes are labeled on the closed conformation of the 3-D S protein of SARS CoV-2 (PDB 6ZB5) using PyMOL 2.3.4 program. The RBD and immunodominant B cell epitopes are colored differentially as shown.
