Figure 7
From: Determination of aortic pulse transit time based on waveform decomposition of radial pressure wave

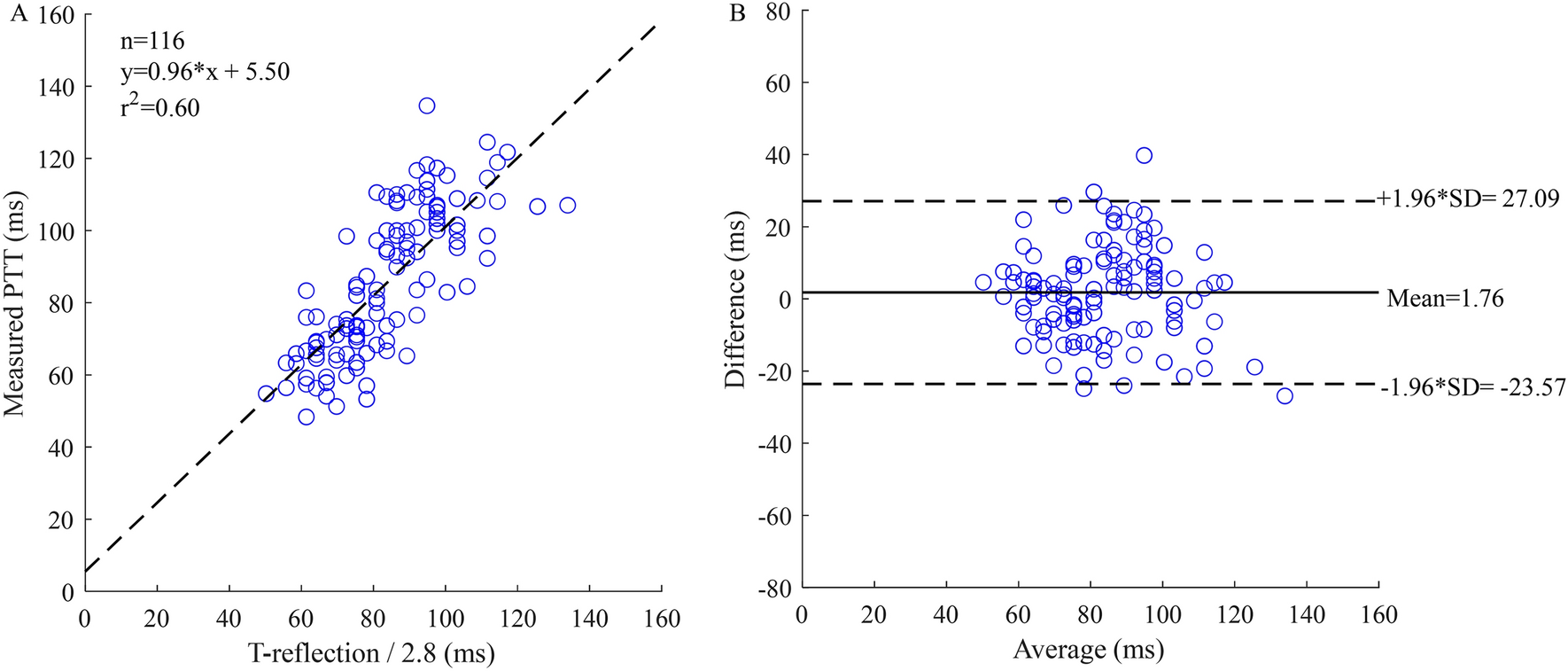

Correlation graphs and Bland–Altman plots comparing measured and calculated PTTs. (A) Scatter plot of the calculated PTT (T-reflection/2.8) vs measured carotid to femoral transit time (cfPTT) with regression line (dashed line) for all data. (B) Bland Altman plot of T-reflection/2.8 vs cfPTT for all data. Solid line is the mean difference, and the dashed lines are ± 1.96 SD of the difference. Difference: Measured cfPTT − calculated PTT; Average: (Measured cfPTT + calculated PTT)/2.
