Figure 10
From: Uplift resistance capacity of anchor piles used in marine aquaculture

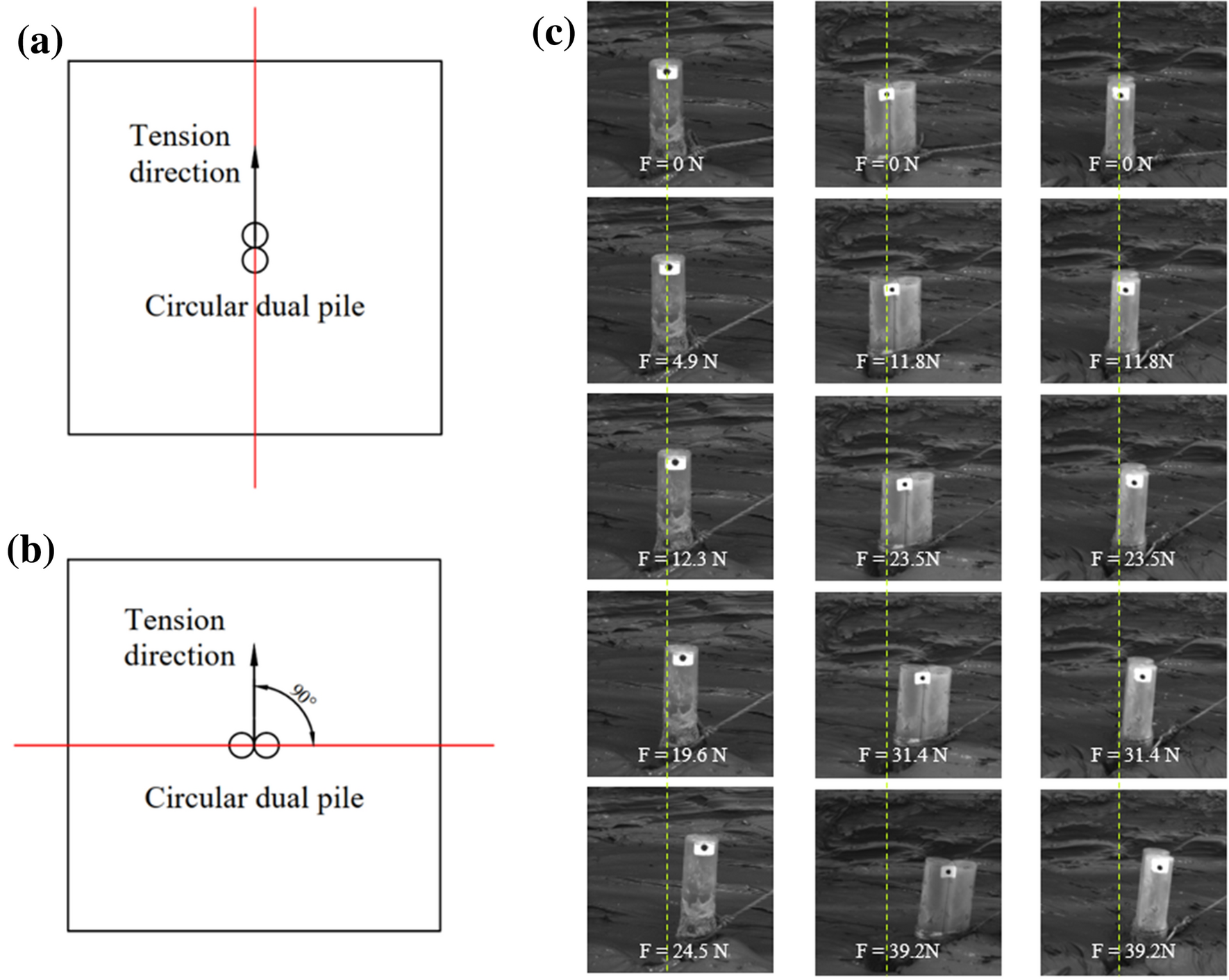

Different layouts of dual piles 0°\(\_\)dual (a) and 90°\(\_\)dual (b). Photos of the failure process of variables pile configuration (left column: circular single pile; middle column:circular 0°\(\_\)dual layout; right column: circular 90°\(\_\)dual layout) with \(\theta\) = 60° (c).
