Figure 10
Available at https://www.sketchup.com/download/all.

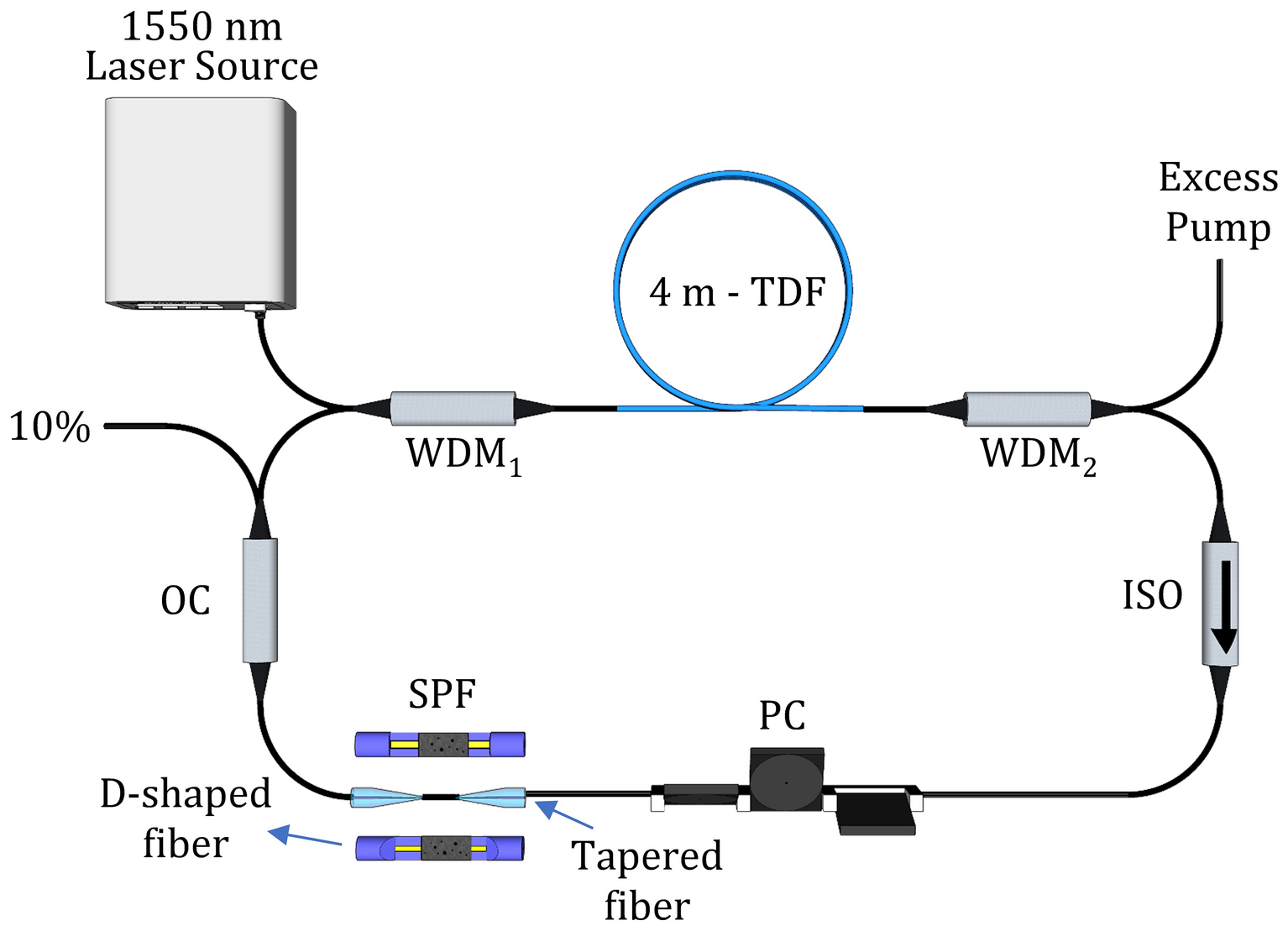

Illustration of the experimental setup for the 2 µm mode-locked Thulium-doped fiber laser (TDFL). This figure was drawn using SketchUp Make 2017 (Basic), Software Version: Windows 64-bit 17.2.2555.
