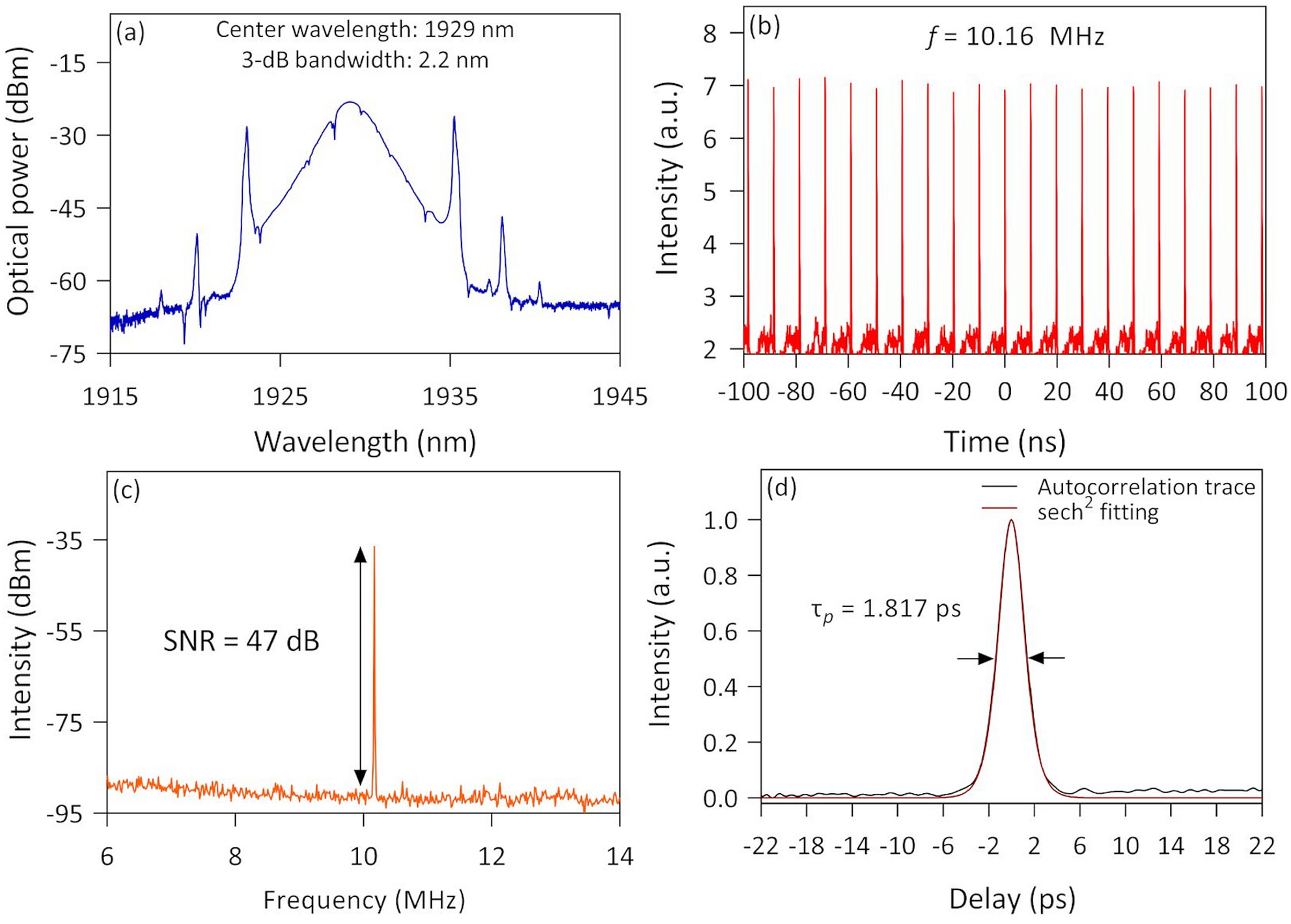

Figure 13

The output characteristic for mode-locked thulium-doped fiber laser using Ta₂AlC arc-shaped fiber saturable absorber: (a) Optical spectrum, (b) soliton train, (c) radio frequency spectrum, and (d) autocorrelation trace.
