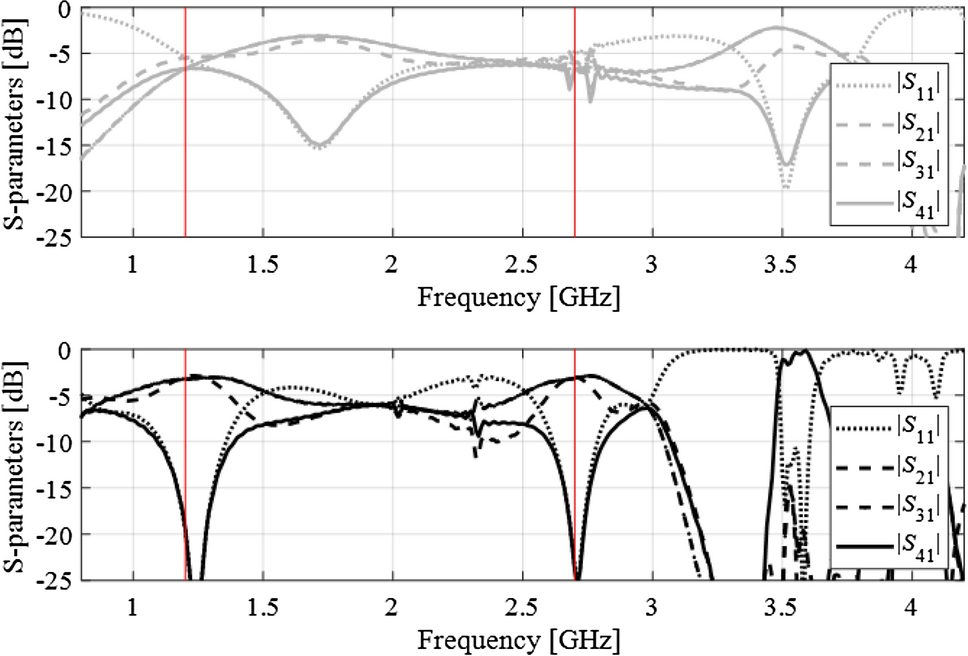

Figure 10

Dual-band branch-line coupler: scattering parameters at the initial (top) and the final design (bottom) obtained using the proposed design specification management methodology. Target operating frequency marked using the vertical lines.
