Figure 14

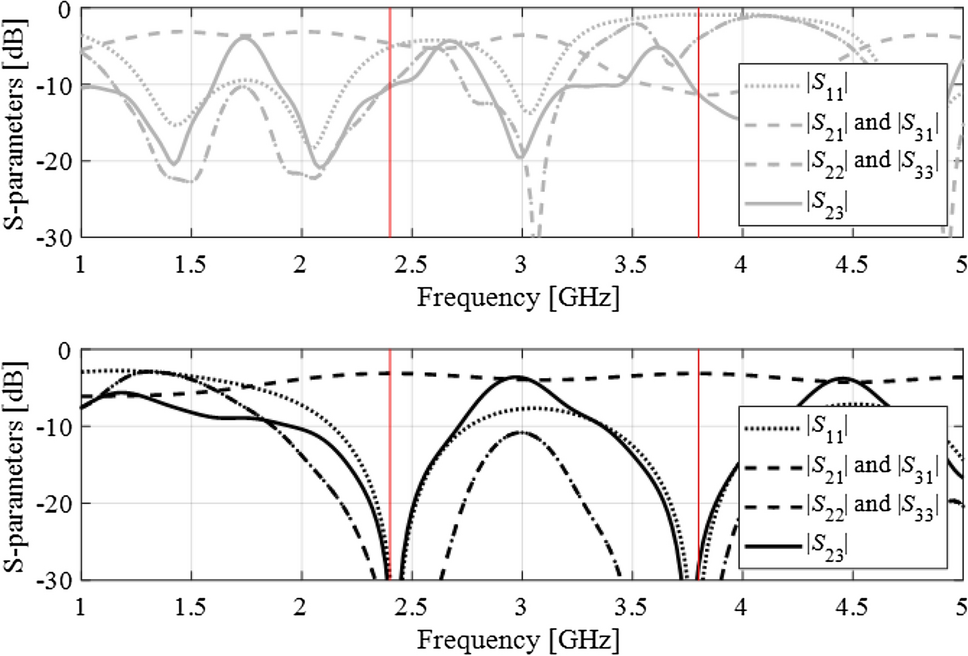

Dual-band power divider: scattering parameters at the initial (top) and the final design (bottom) obtained using the proposed design specification management methodology. Target operating frequencies marked using the vertical lines.
