Figure 7
From: High-throughput segmentation of unmyelinated axons by deep learning

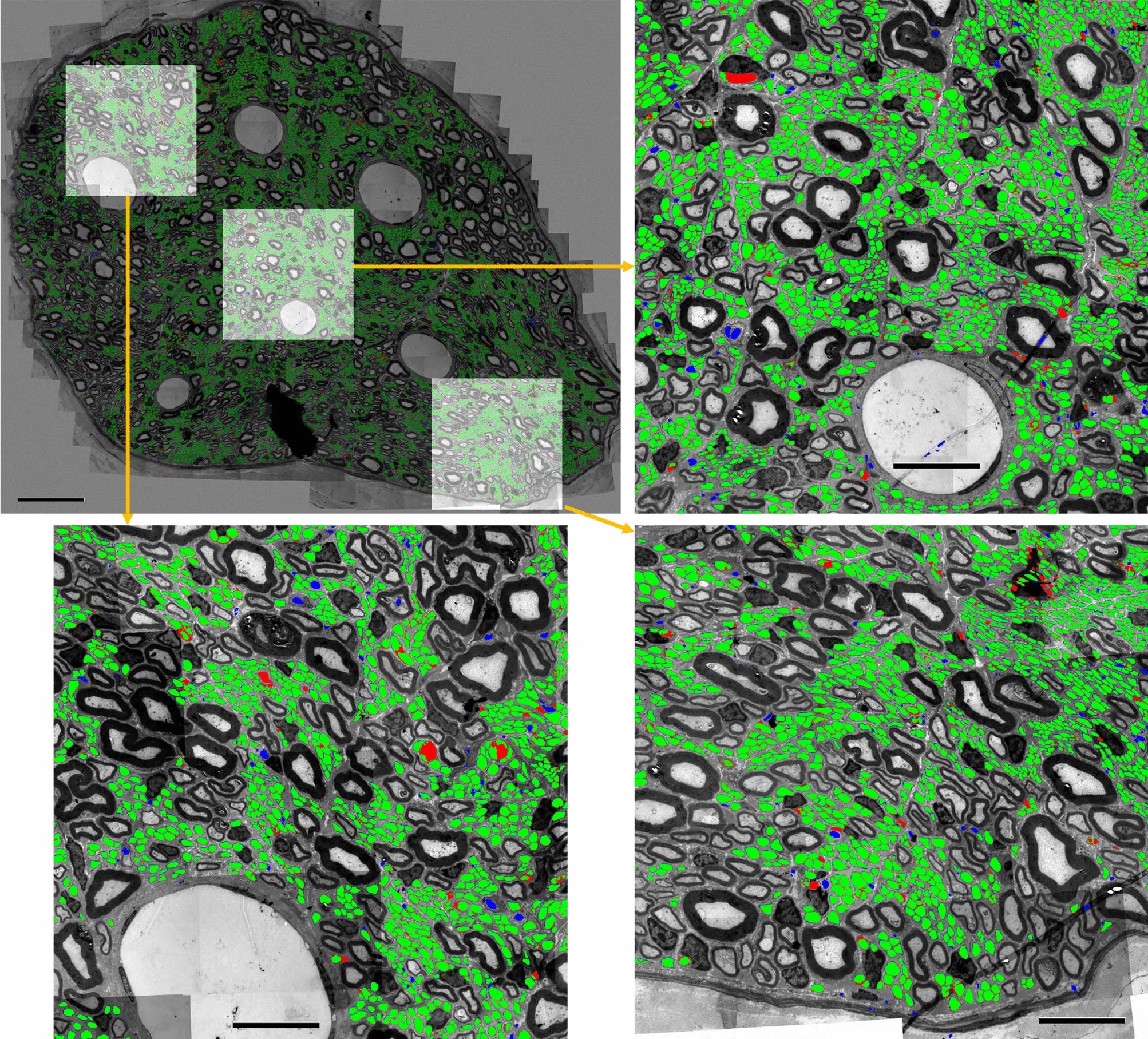

Fully automated evaluation on an image with dense regions of UMFs surrounded by myelin-rich regions. TP, FP, and FN regions are shown in green, blue, and red, respectively. Scale bars 30Â \(\upmu \)m on the top left and 10Â \(\upmu \)m otherwise. \(SQ=0.872\) and \(RQ=0.909\).
