Figure 3

From: Complete mitogenome of the endangered and endemic Nicobar treeshrew (Tupaia nicobarica) and comparison with other Scandentians

Figure 3

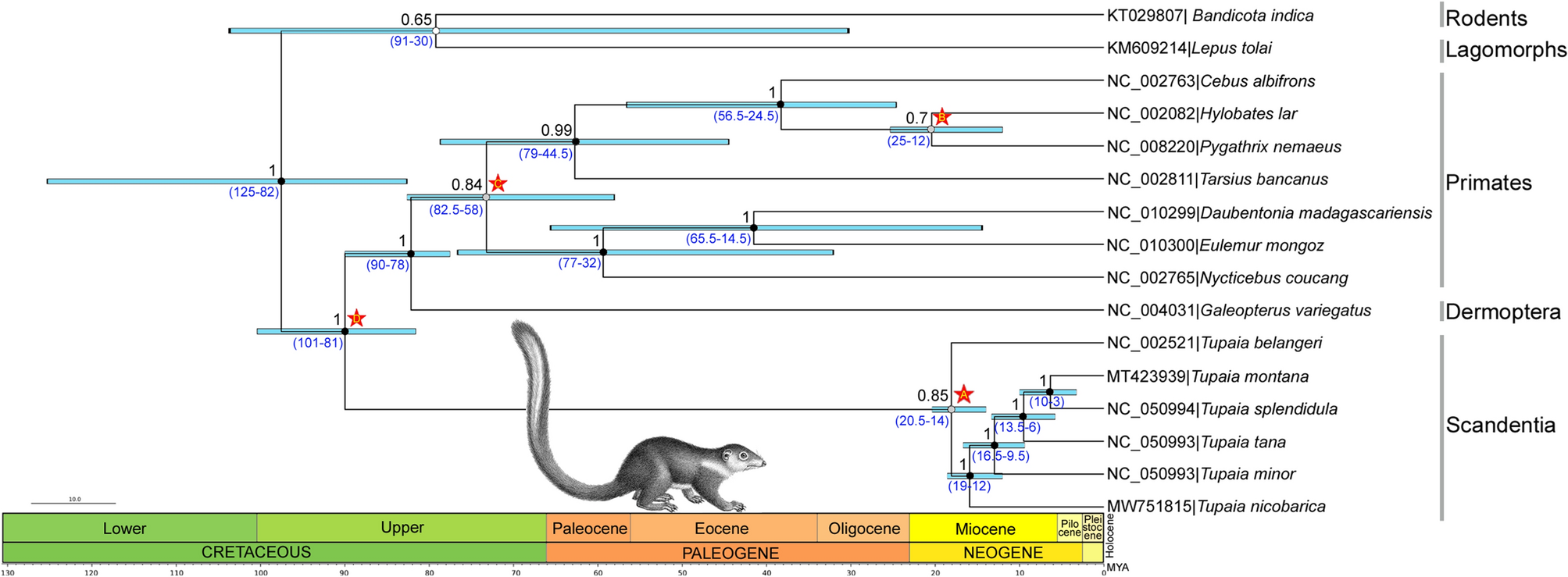

Bayesian inference showed the molecular timescale for Tupaiidae species evolution compared with other Primates and Dermoptera species as well as Lagomorphs and Rodents as out-group. Posterior probabilities were represented by black digit along with each node. The divergence times (in MYA) were estimated by four calibration points (marked by red stars) with GTR + I + G substitution model and relaxed uncorrelated log-normal clock with the Yule speciation model in BEAST v2.4.7. Blue bars represent 95% highest probability density (HPD) around mean estimates of divergence times. The range of the estimated divergence times were marked by values in blue along with each node. Treeshrew artwork was acquired from web (https://www.wpclipart.com; Paul Sherman) and edited manually in Adobe Photoshop CS 8.0.
