Figure 2 | Scientific Reports

Figure 2

From: Construction and validation of safe Clostridium botulinum Group II surrogate strain producing inactive botulinum neurotoxin type E toxoid

Figure 2

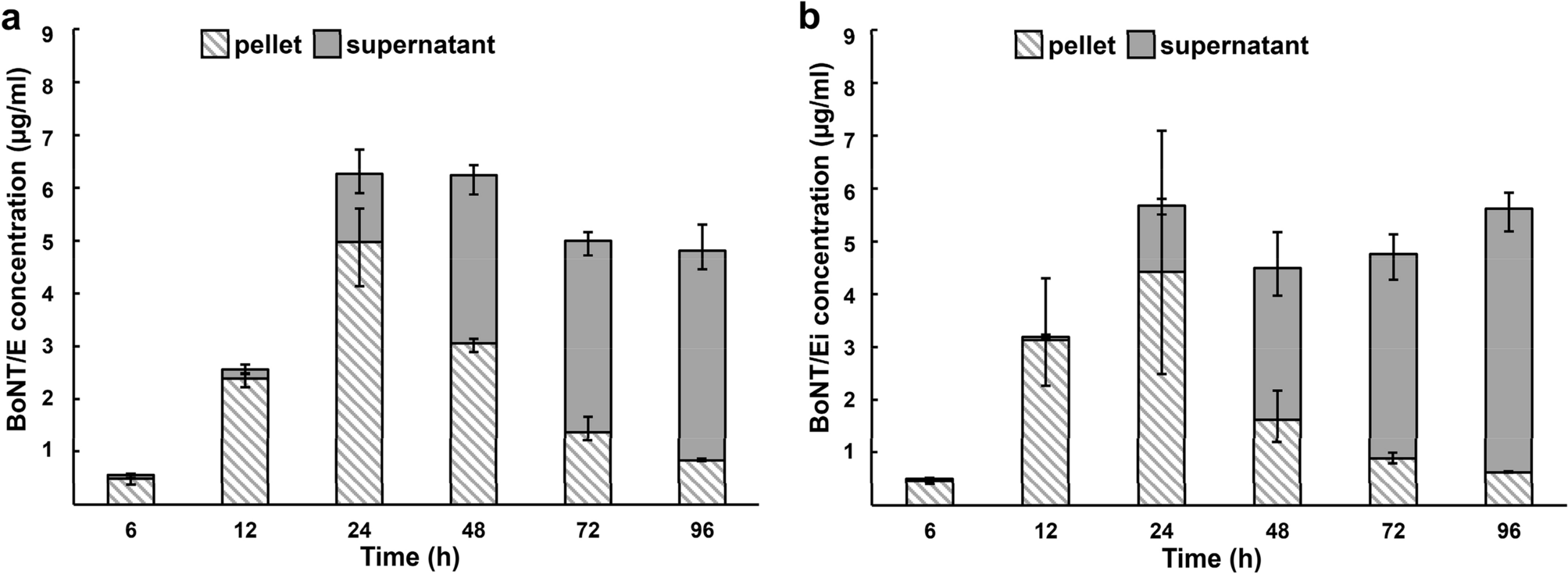

BoNT/E and BoNT/Ei concentrations and distribution in Clostridium botulinum Beluga wild-type (Beluga WT) (a) and Beluga Ei (b) cultures determined with BoNT/E-directed sandwich enzyme-linked immunosorbent assay (ELISA). Error bars indicate the highest and the lowest concentrations measured of the three parallel biological replicates.
