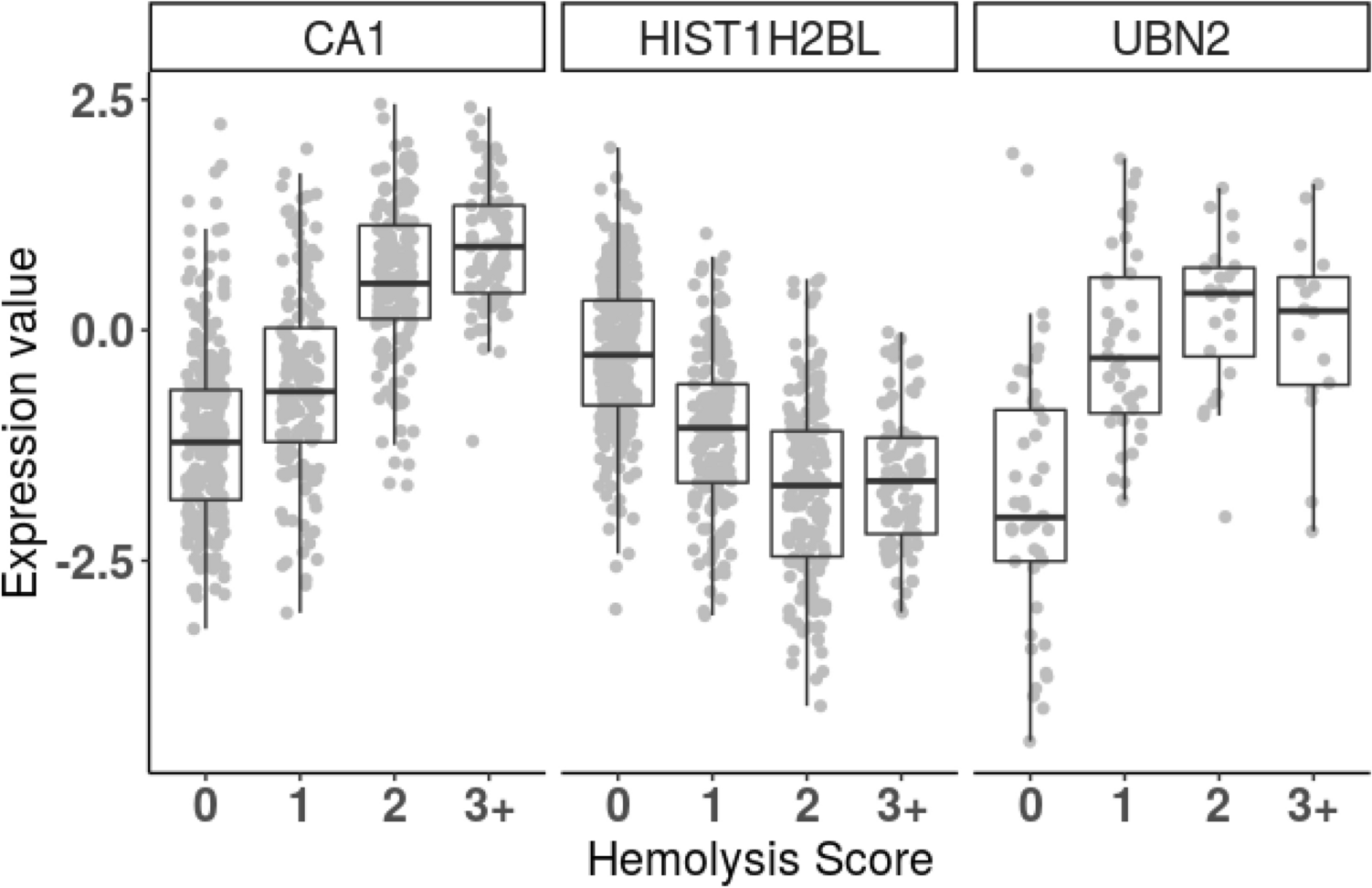

Figure 6
is a boxplot of buffy coat proteins expressions of (CA1 = Carbonic anhydrase, HIST1H2BL = Histone H2B type 1-L, UBN2 = Ubinuclein-2) that were identified as significantly differentially expressed proteins in comparison to their Hemolysis score of 0, 1, 2 and 3+. Expression values are log2 ratio to the reference sample. CA1 protein comparison between 0 versus 1 with an adjusted p value of 5.54E−07, comparison of 0 versus 2 with adjusted p value of 1.56e−53 and comparison of 0 versus 3 with adjusted p value of 3.27e−50. UBN2 protein comparison between 0 versus 1 with adjusted p value of 4.57e−07, comparison of 0 versus 2 with adjusted p value of 2.88e−08 and comparison of 0 versus 3 with adjusted p value of 5.42e−05. H2BC13 protein comparison between 0 versus 1 with adjusted p value of 2.72e−18, whereas comparison of 0 versus 2 with adjusted p value of 2.60e−45 and comparison of 0 versus 3 with adjusted p value of 3.12e−31.
