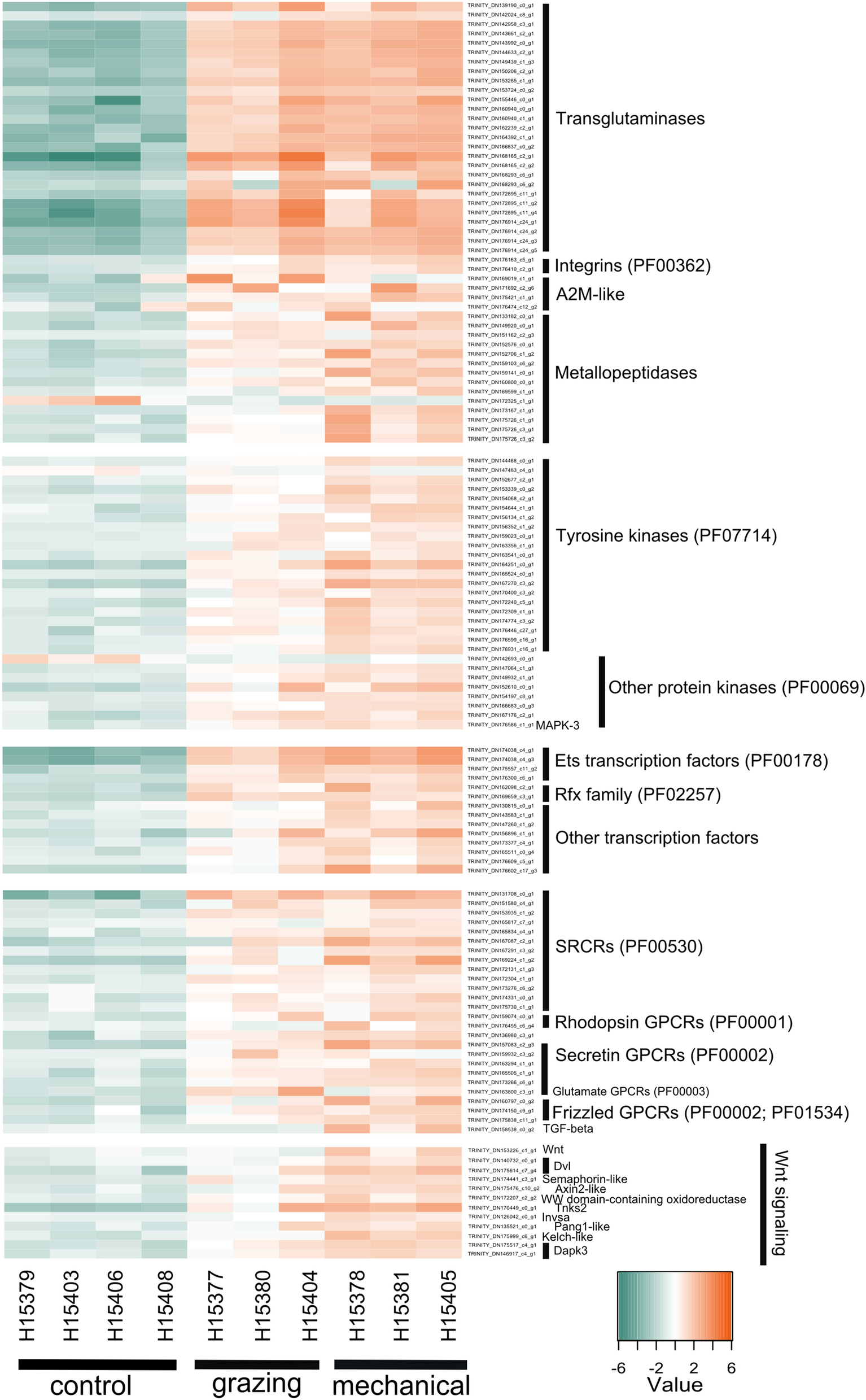

Figure 3
Expression changes of differentially expressed genes involved in clotting-like cascades and signaling during sponge wounding response. Heatmaps showing log2-transformed median-centered TMM-normalized expression changes of selected DEG (rows) in each sample from 3 h post-treatment experiment. Differential gene expression analyses were performed in edgeR following Trinity pipeline45. Genes were annotated in Trinotate48. The domain annotation (PFAM) is shown in brackets. The full list of DEGs is found in Supplementary Data S1 online.
