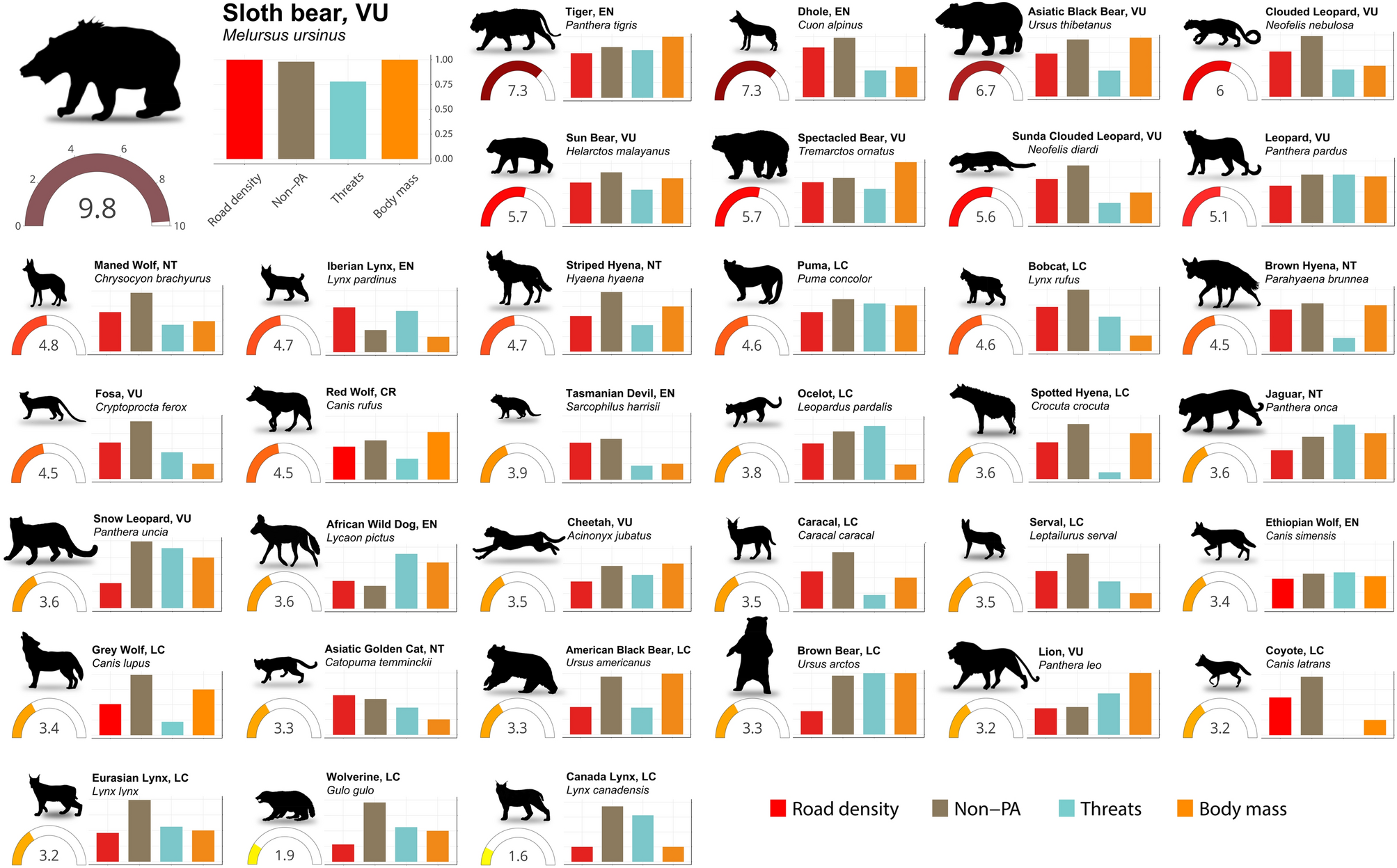

Figure 2
Apex predators risk to roads calculated as the product of exposure to roads (road density within the species range) and vulnerability of species. Gauges indicate the risk value of each species. Bars indicate the standardized road density, the proportion of species distribution area unprotected, standardized number of IUCN listed threats, and standardized value of the categorized average body mass (i.e., very large (> 100 kg), large (25–100 kg), medium (15–25 kg), small (8–15 kg)). The IUCN conservation of each species18 is shown. P. uncia, L. pictus and L. canadensis silhouettes were drawn by Gabriela Palomo-Muñoz, all predator silhouettes were acquired from PhyloPic (http://phylopic.org/).
