Figure 2 | Scientific Reports

Figure 2

From: Effect of vibration on orthodontic tooth movement in a double blind prospective randomized controlled trial

Figure 2

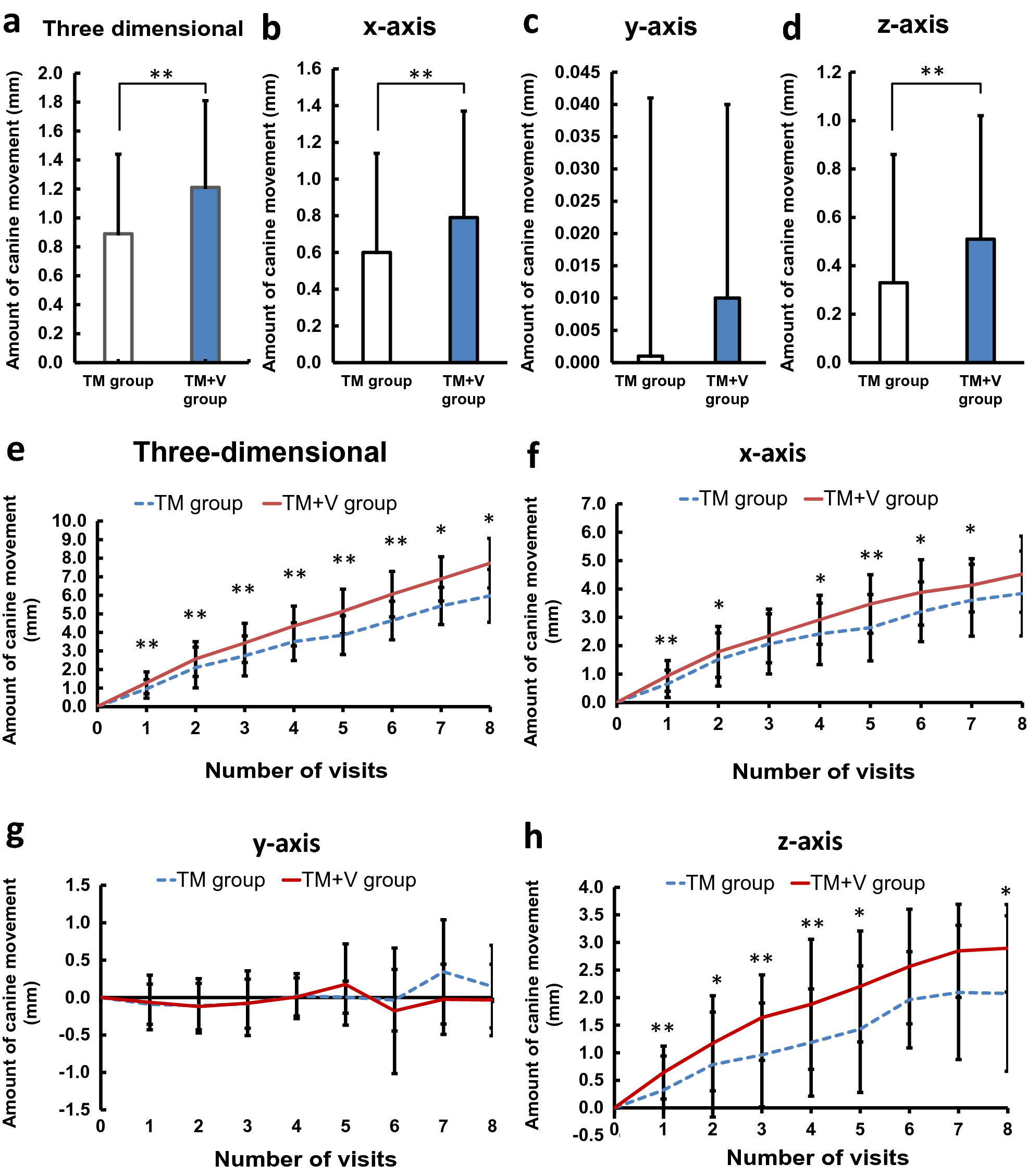

Amount of canine movement. (a) Amount of three-dimensional movement of canine. (b–d) Amount of canine movement on each coordinate axis. (b) Amount of canine movement on x-axis. (c) Amount of canine movement on y-axis. (d) Amount of canine movement on z-axis. (e) Amount of canine movement for each visit. (f–h) Amount of canine movement for each visit on coordinate axis. (f) Amount of canine movement for each visit on x-axis. (g) Amount of canine movement for each visit on y-axis. (h) Amount of canine movement for each visit on z-axis. *P < 0.05, **P < 0.01.
