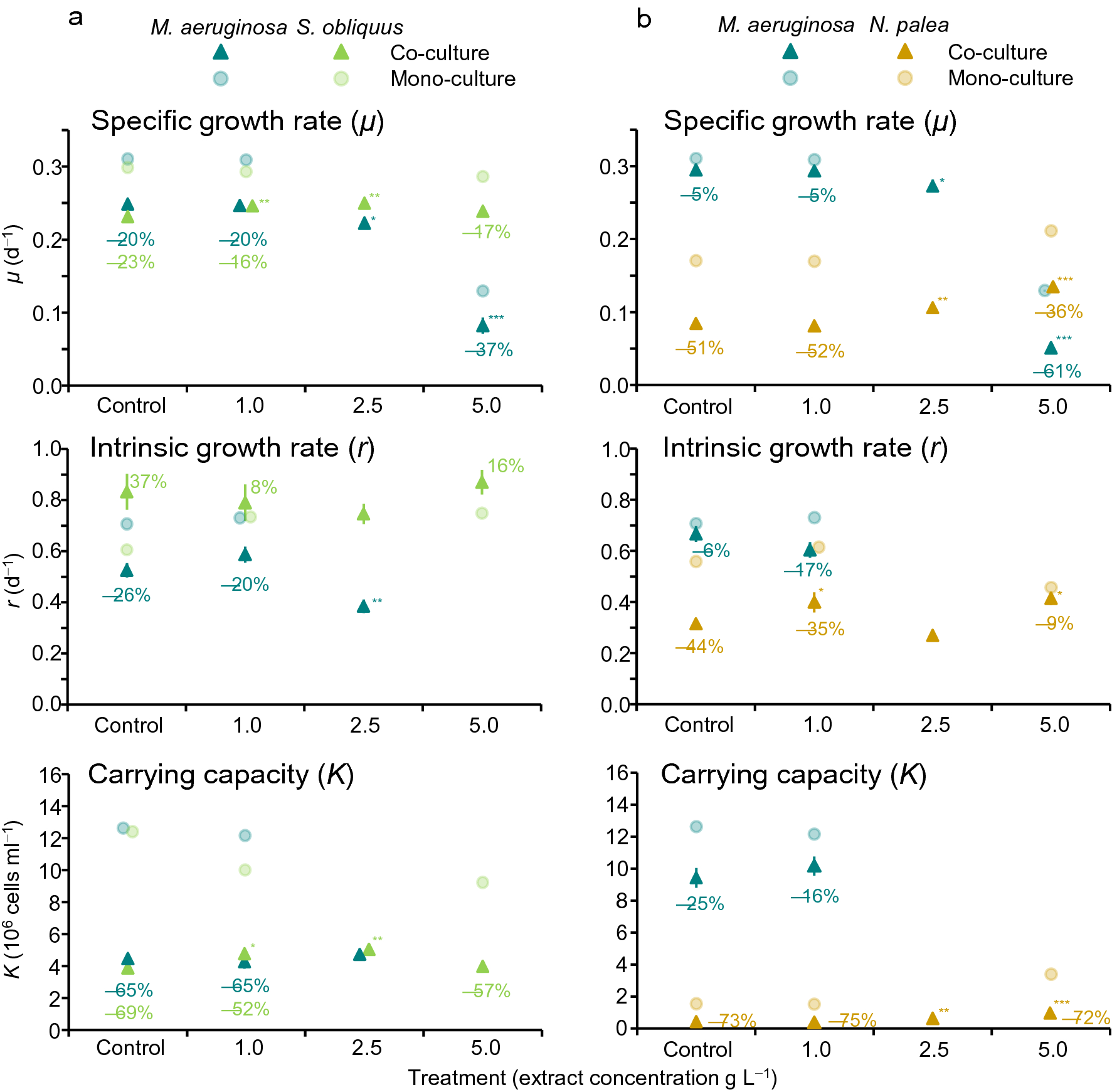

Figure 4
From: Multiple roles of bamboo as a regulator of cyanobacterial bloom in aquatic systems
Growth parameters (μ, r, K) calculated for each species in different treatments in co-culture systems (a: Microcystis aeruginosa and Scenedesmus obliquus, b: M. aeruginosa and Nitzschia palea). Error bars are SD (n = 3). Asterisks denote a significant difference between the control and extract treatments for each species (Dunnett’s test, *: p < 0.05, **: p < 0.01, ***: p < 0.001). Growth parameters of each species in the mono-culture and percentage decrease from mono- to co-culture systems for each parameter are also shown. Values of r and K were not obtained for M. aeruginosa in some cases.
