Figure 7
From: A wave finite element approach for modelling wave transmission through laminated plate junctions

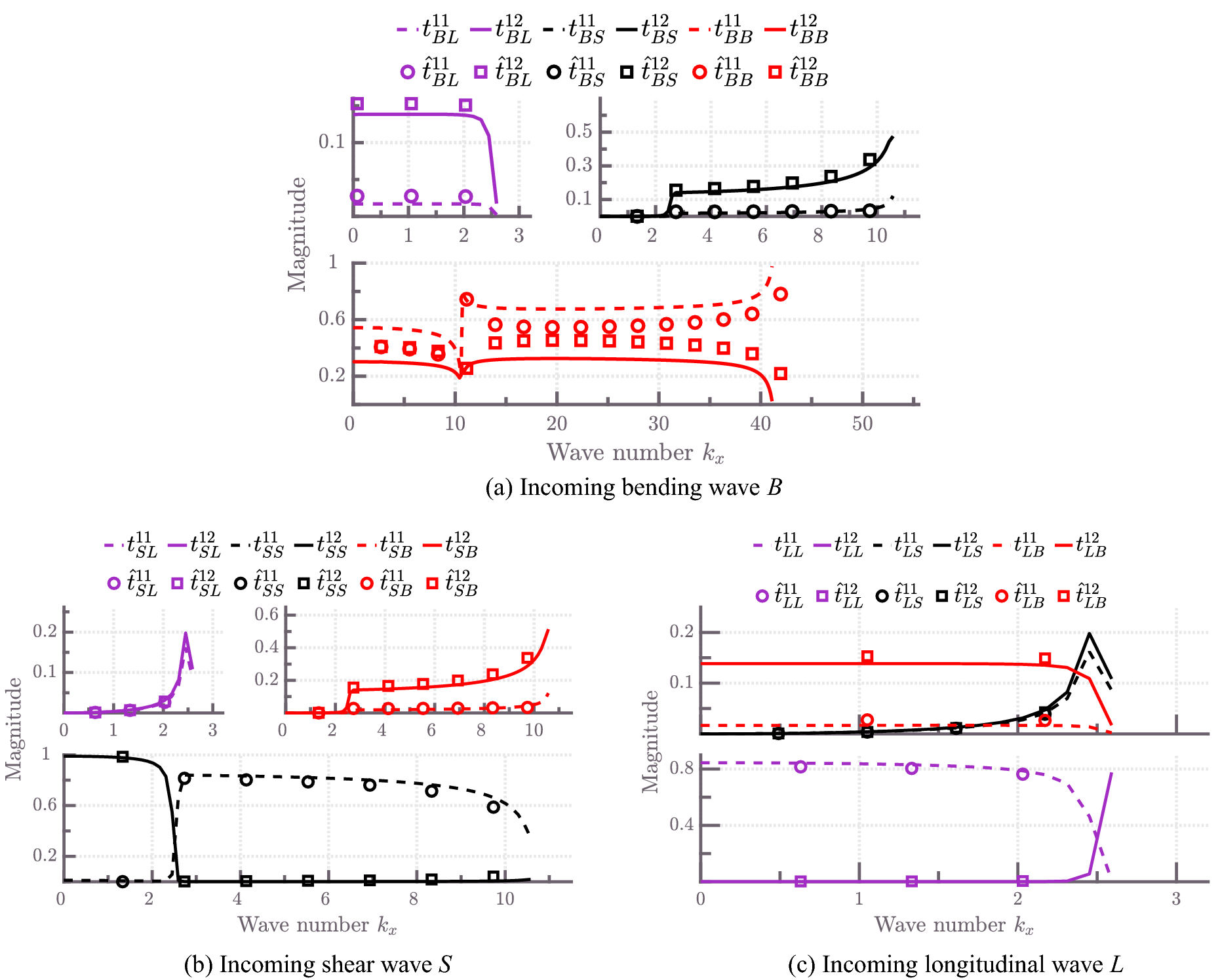

Energy scattering coefficients of an L-junction of two SOLID185-based cross-ply laminated plates for various incident waves plotted with respect to the wave number component \(k_x\) at a frequency \(f=3000\)Â Hz. \({\hat{t}}^{nm}_{ij}\) denote semi-analytical scattering coefficients obtained using the method presented in20.
