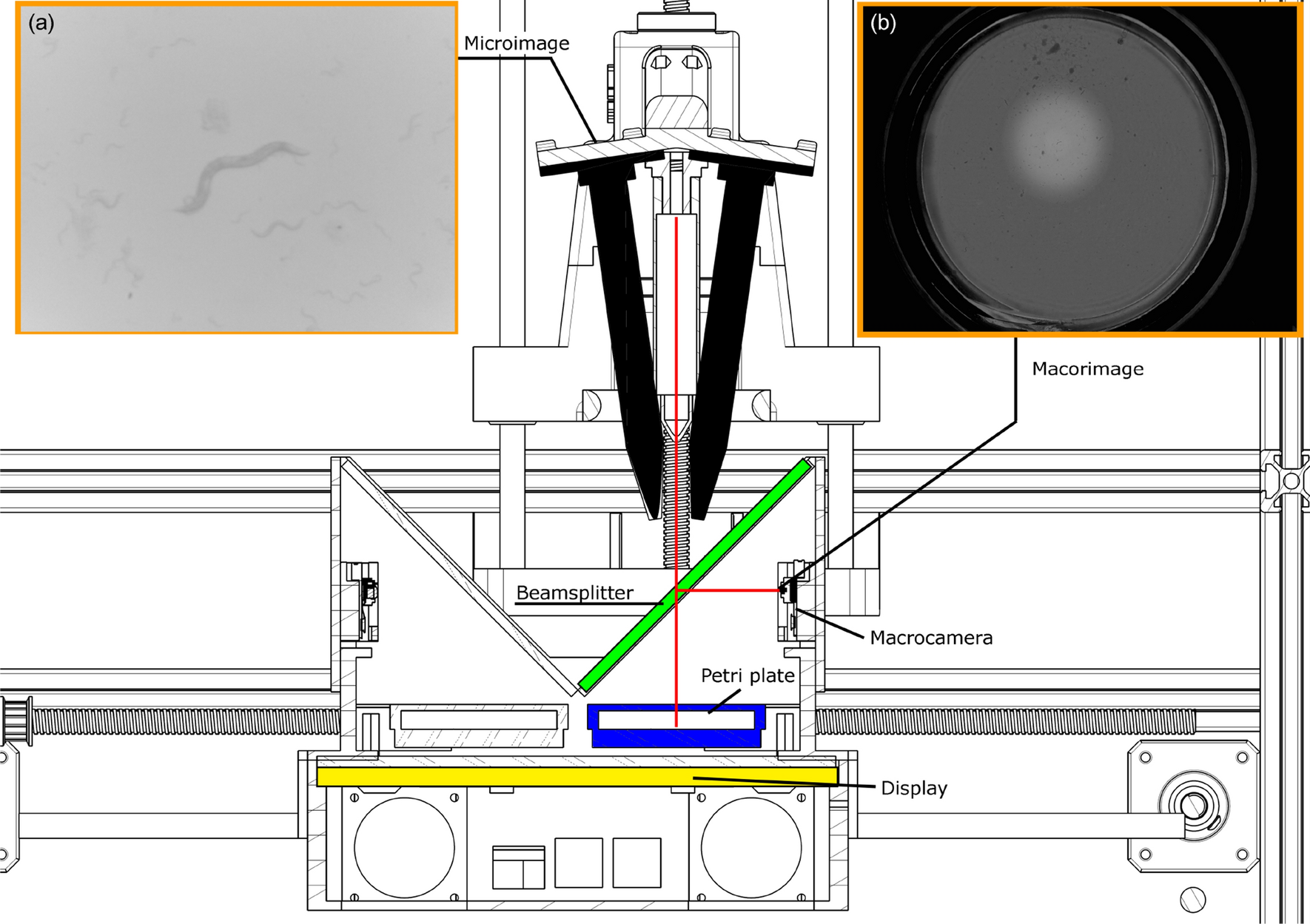

Figure 8
The head and the carriage assembly are shown and how all components interact. The image was obtained with SOLIDWORKS 2020 SP3.0. (a) Shows a microimage taken from one of both microcamera. (b) Shows macroimage taken from macrocamera.
