Figure 5
From: Cardiac dyspnea risk zones in the South of France identified by geo-pollution trends study

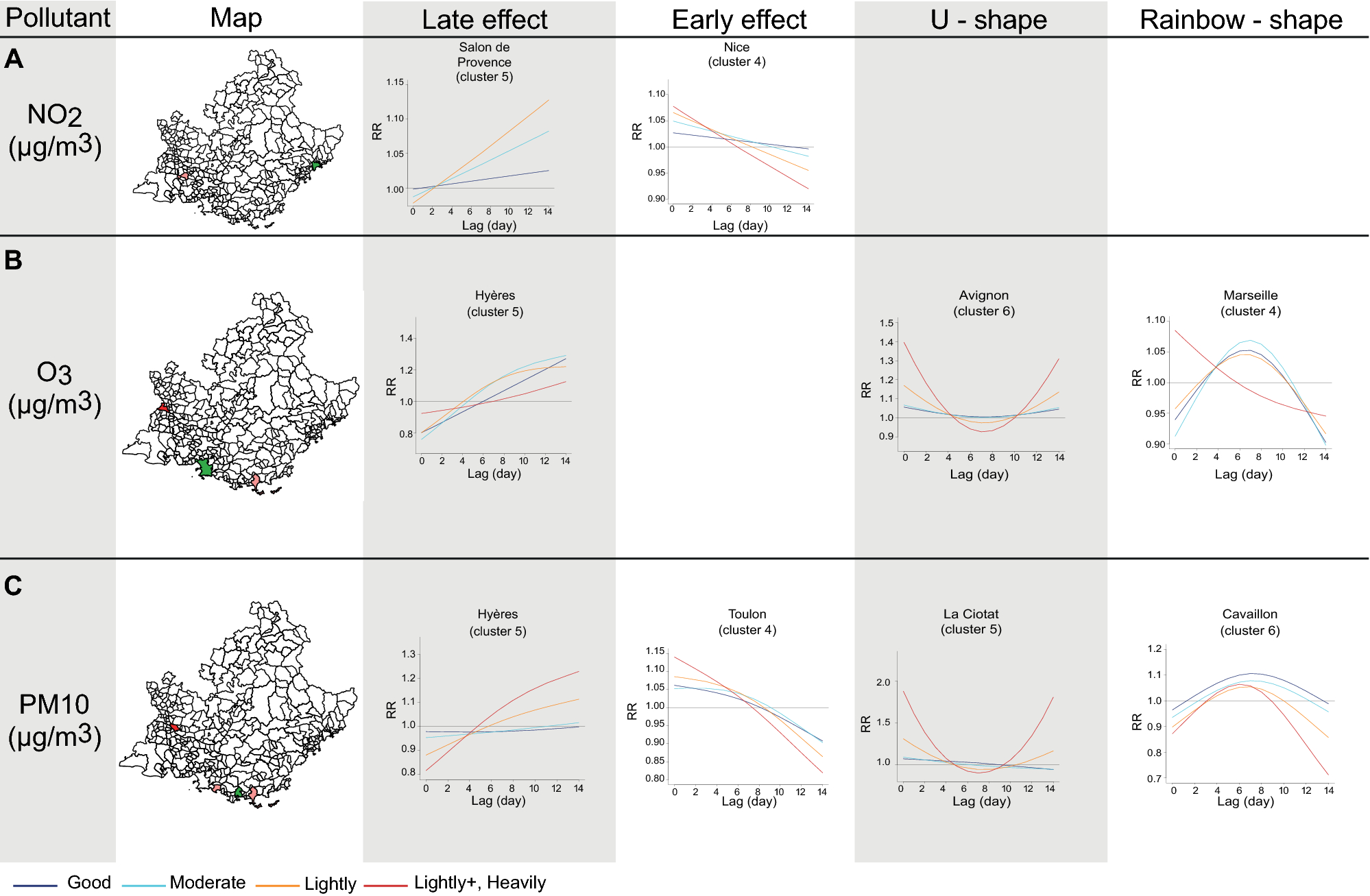

DLNM by singular zones, only significant results for the selected 23 zones are reported. Lag-specific effect on CD events for increases of NO2 (A), O3 (B) and PM10 (C) over the thresholds indicated in the legend in the plot. Only the most representative plot is reported for each pollutant and shape of the response-effect curves. Others zones showing similar trends are reported in Supplementary Fig. 5. Maps were created with the R package maptools v1.1-1.
