Figure 3 | Scientific Reports

Figure 3

From: Depressive symptoms reduce when dorsolateral prefrontal cortex-precuneus connectivity normalizes after functional connectivity neurofeedback

Figure 3

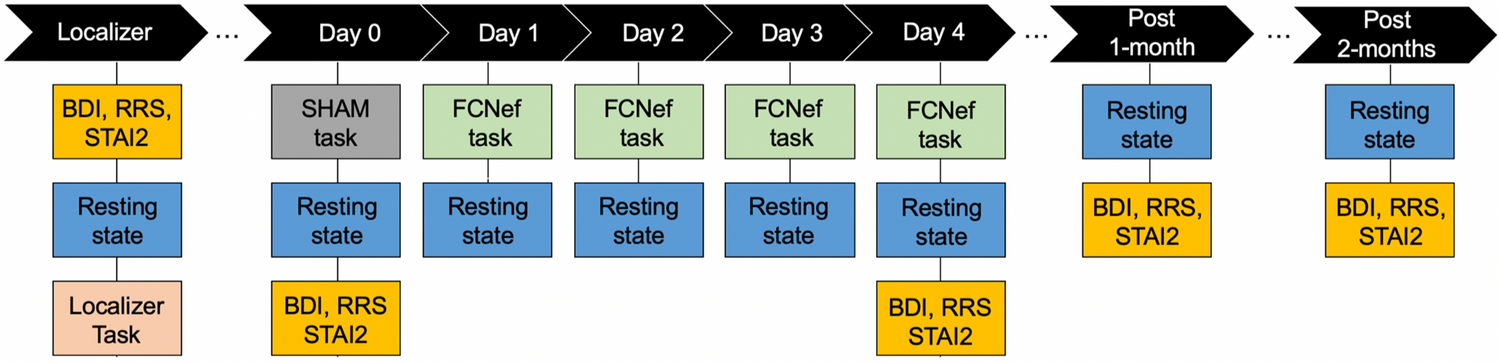

Experimental Outline. A schematic showing the general flow of experiments. Each vertical column represents a different experimental day. Periods are inserted between non-consecutive days. The post 1- and post 2-month data was only collected for the 2nd experiment. BDI = Beck’s Depression Inventory. RRS = Rumination Response Scale. STAI2 = Trait Anxiety Scale. FCNef = Functional Connectivity Neurofeedback. SHAM = SHAM FCNef.
