Figure 4 | Scientific Reports

Figure 4

From: Xenopus laevis il11ra.L is an experimentally proven interleukin-11 receptor component that is required for tadpole tail regeneration

Figure 4The alternative text for this image may have been generated using AI.

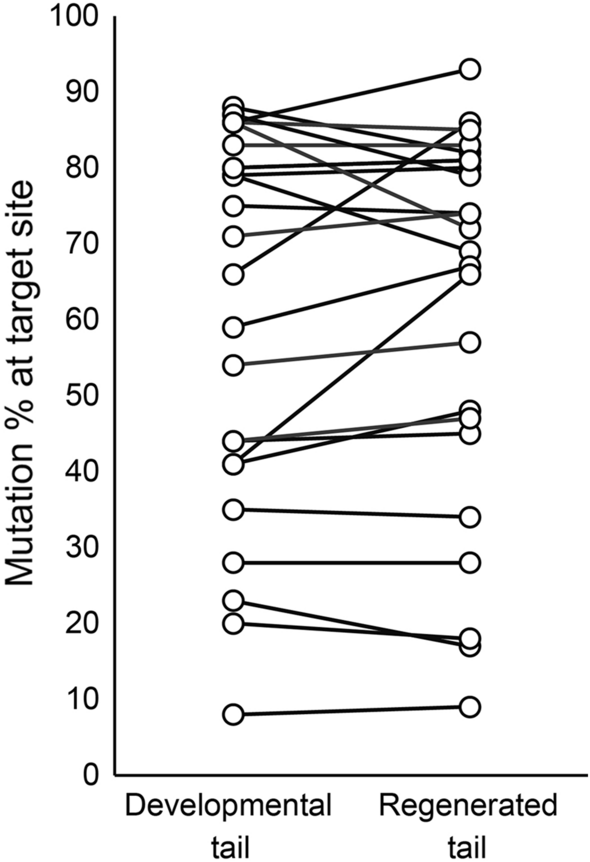

il11ra.L KO cells can contribute to form the regenerated tail. Estimated mutation ratio at the guide RNA #1 target site of the developmental and regenerated tail of each individual is shown. Linked points represent the same individual. n = 24. P = 0.44, paired t-test. Representative result of 2 experiments is shown. The result of the second experiment is shown in Fig. S7.
