Figure 12
From: Multiscale characterization of seawater pipe erosion of B10 copper–nickel alloy welded joints

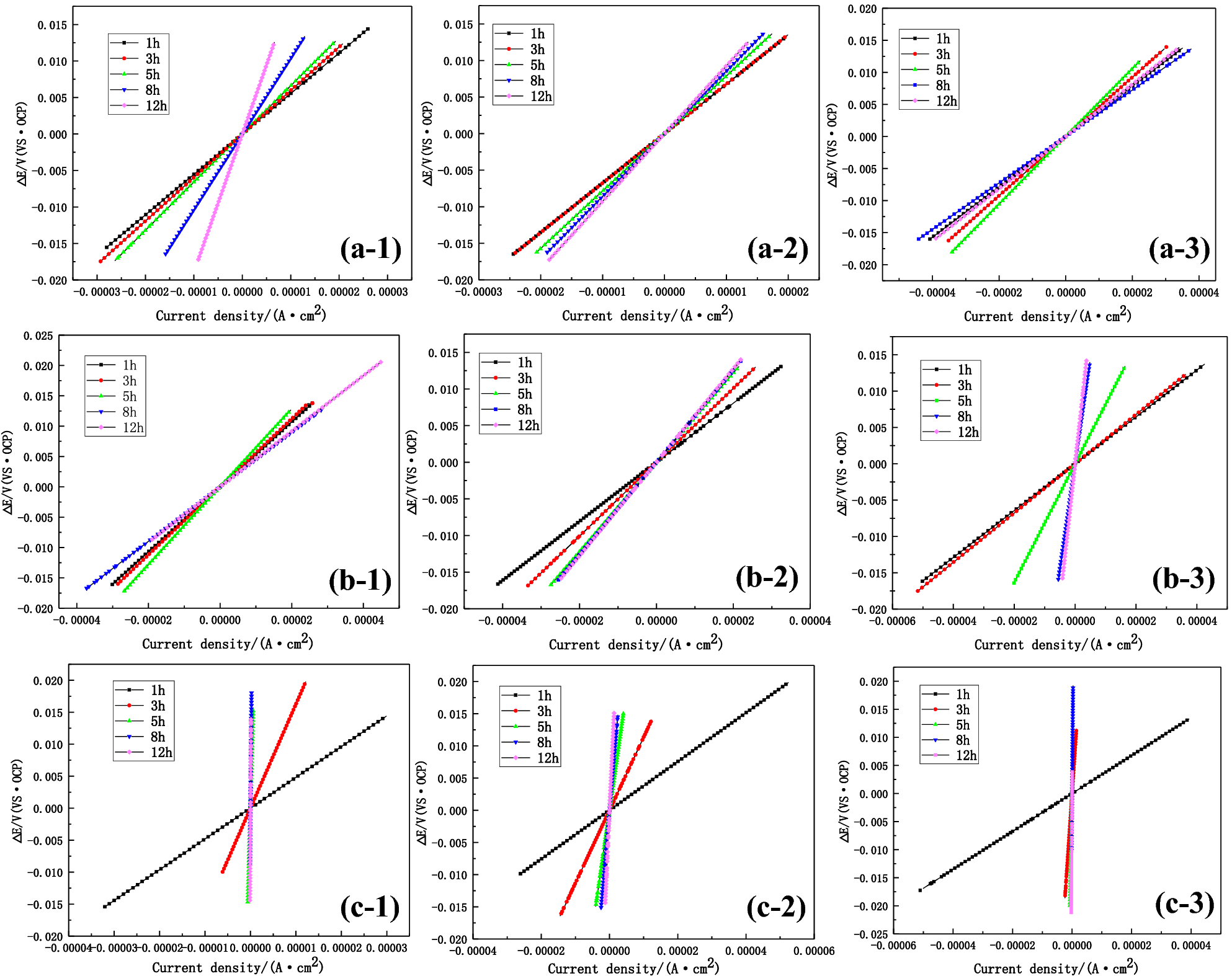

LPR curves of three zones of B10 alloy welded joint at 1.85Â m/s, 3Â m/s and 6Â m/s after 12Â h of flowing seawater corrosion: (a) BM, (b) HAZ, (c) WM, (1) 1.85Â m/s, (2) 3Â m/s, and (3) 6Â m/s.
