Figure 5
From: Tomographic reconstruction from planar thermal imaging using convolutional neural network

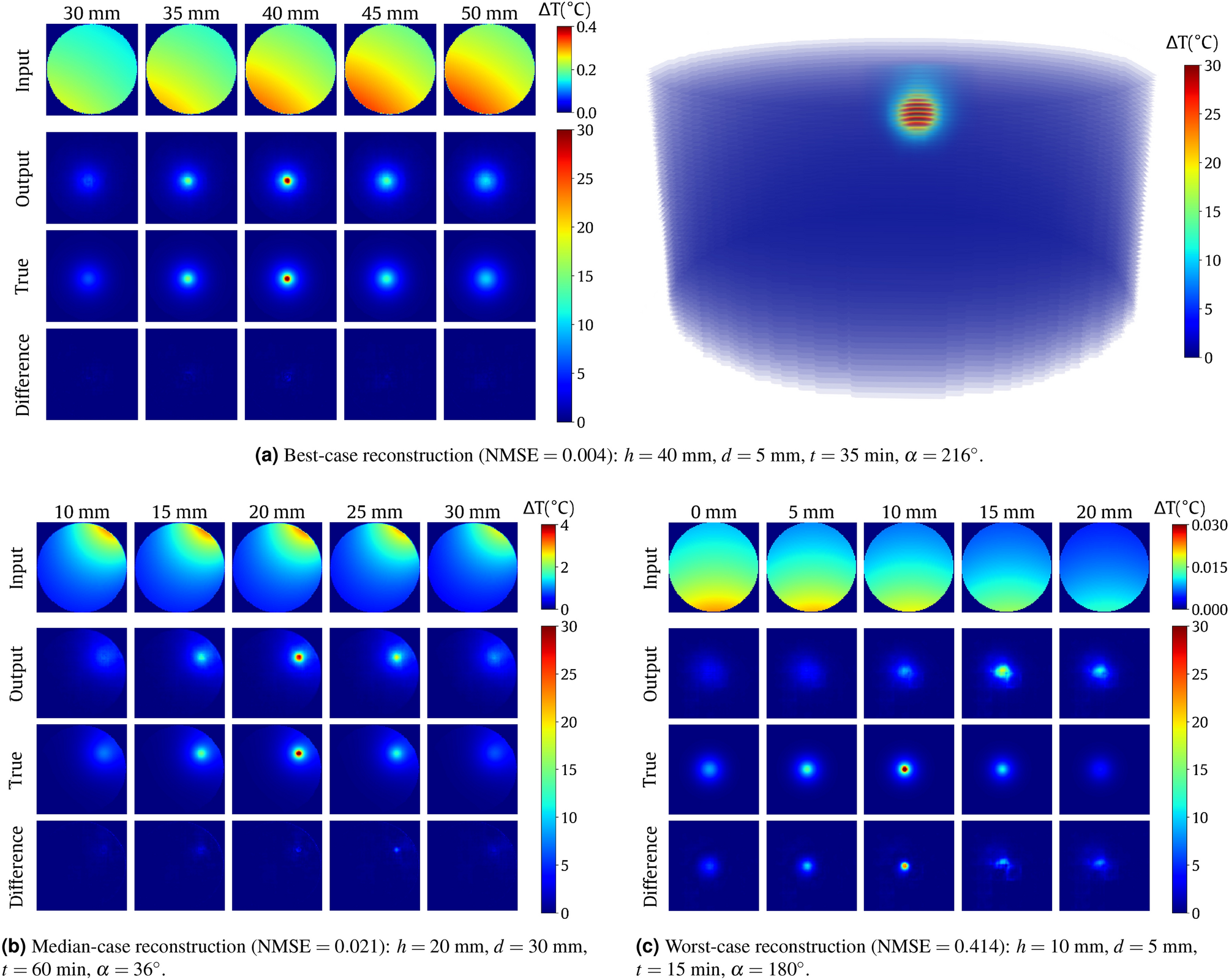

Visualization of the reconstruction results. Top to bottom in each subplot with projections: backprojection slices, final tomographic reconstruction slices, ground-truth slices, the difference between the reconstruction and ground truth (reconstruction error). In each case, the central column contains the heat source center. The location (height) of each slice is given above the column. Volumetric visualization of the reconstruction outcome is given in (a) (see Supplementary Video S1).
