Figure 8
From: Tomographic reconstruction from planar thermal imaging using convolutional neural network

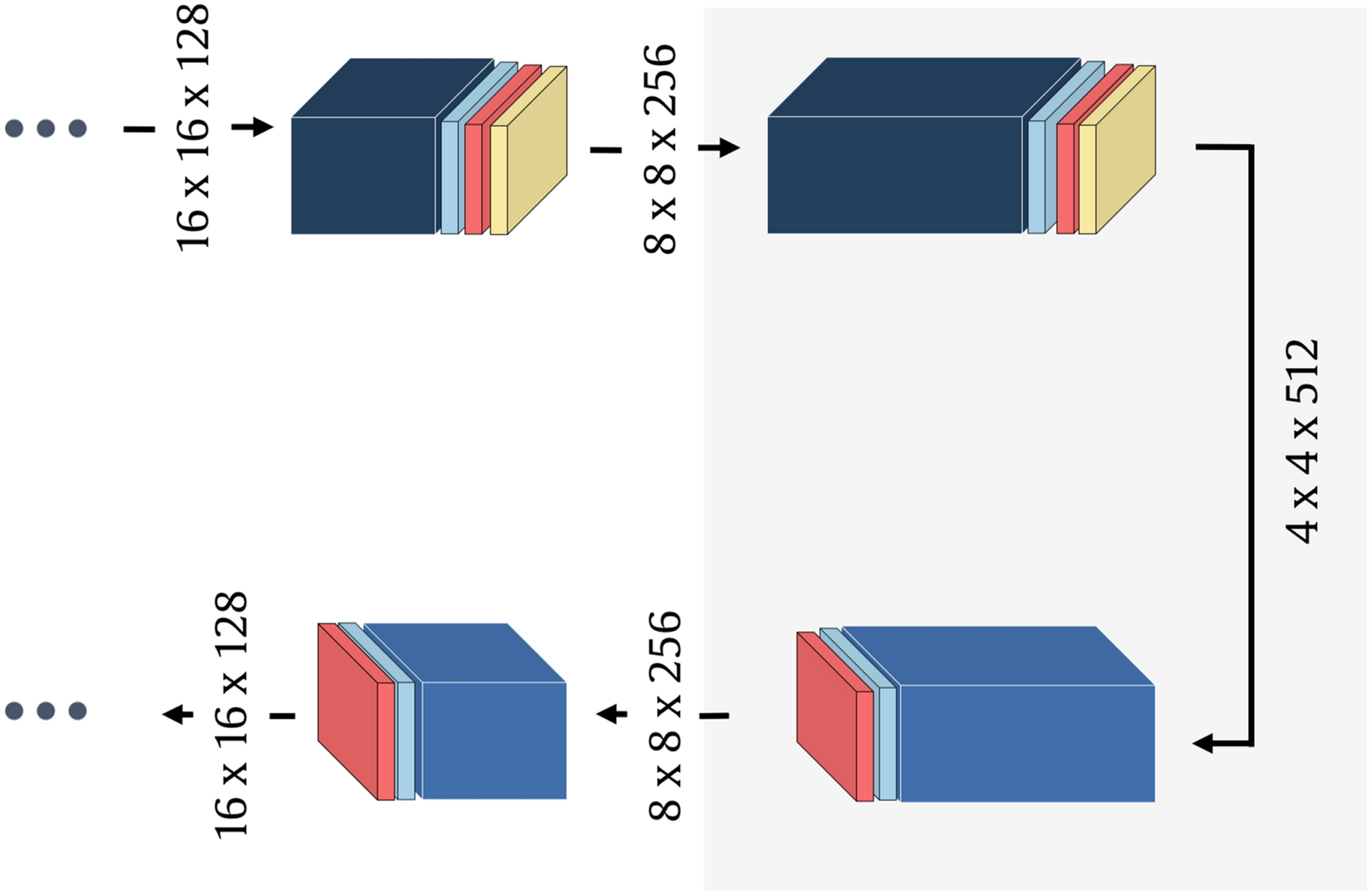

Illustration of the extension of the CNN model from Fig. 4. Added blocks are highlighted with a gray background.
