Figure 4
From: Mesoscopic structural damage and permeability evolution of Shale subjected to freeze–thaw treatment

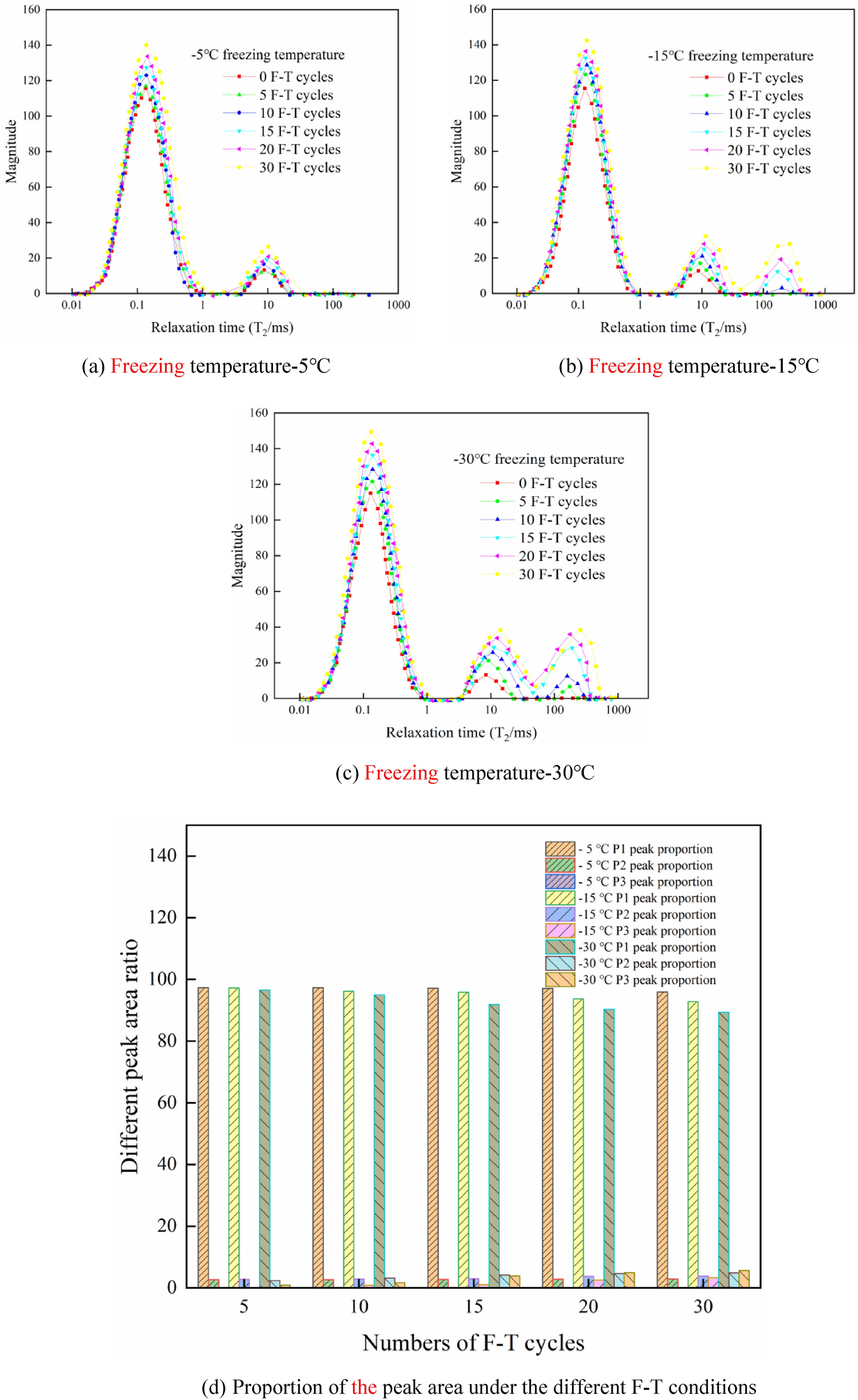

T2 distribution under the different F–T conditions.
Figure 4 | Scientific Reports
From: Mesoscopic structural damage and permeability evolution of Shale subjected to freeze–thaw treatment
T2 distribution under the different F–T conditions.
