Figure 3
From: Mechanical and optimization studies of polypropylene hybrid biocomposites

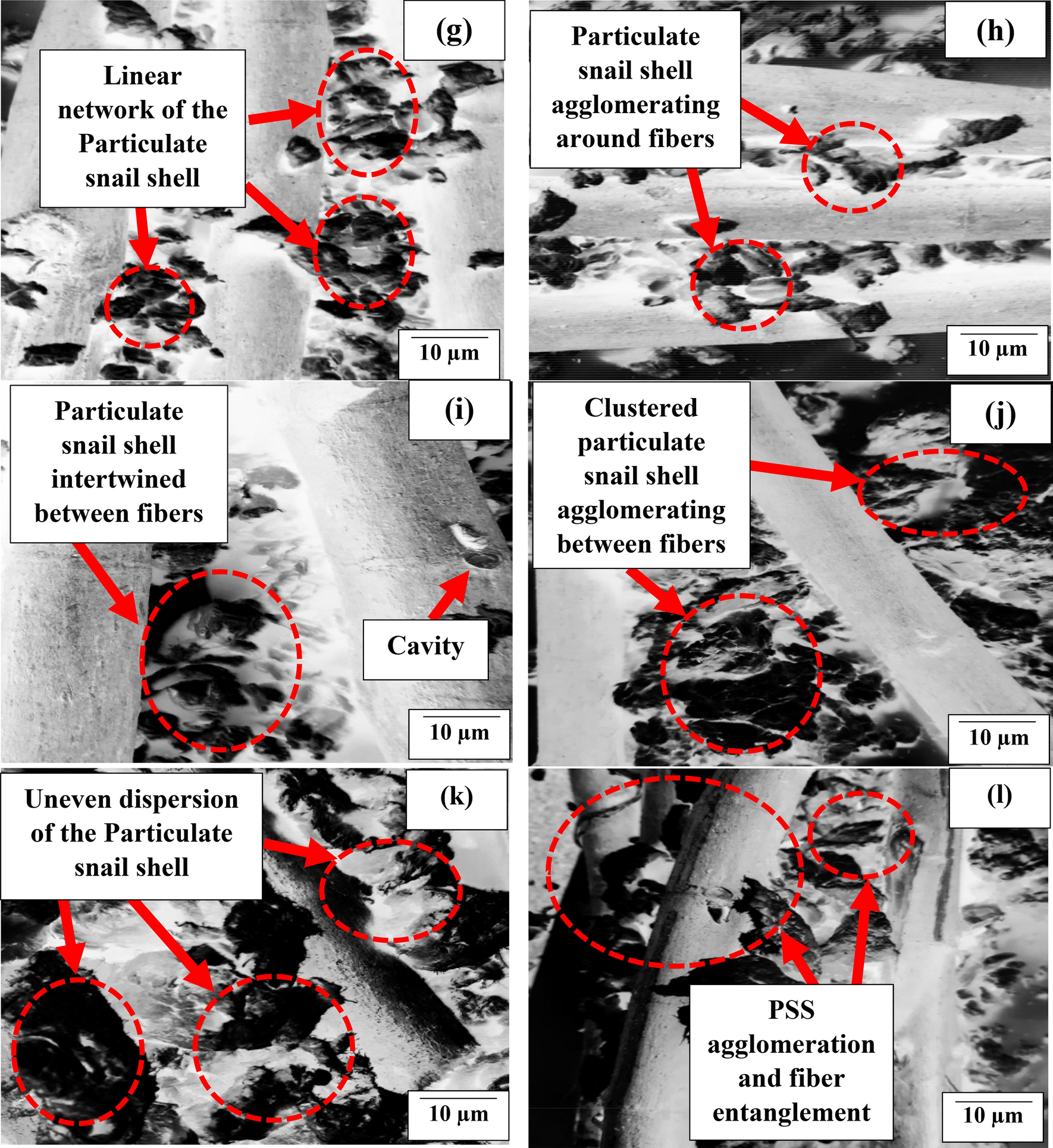

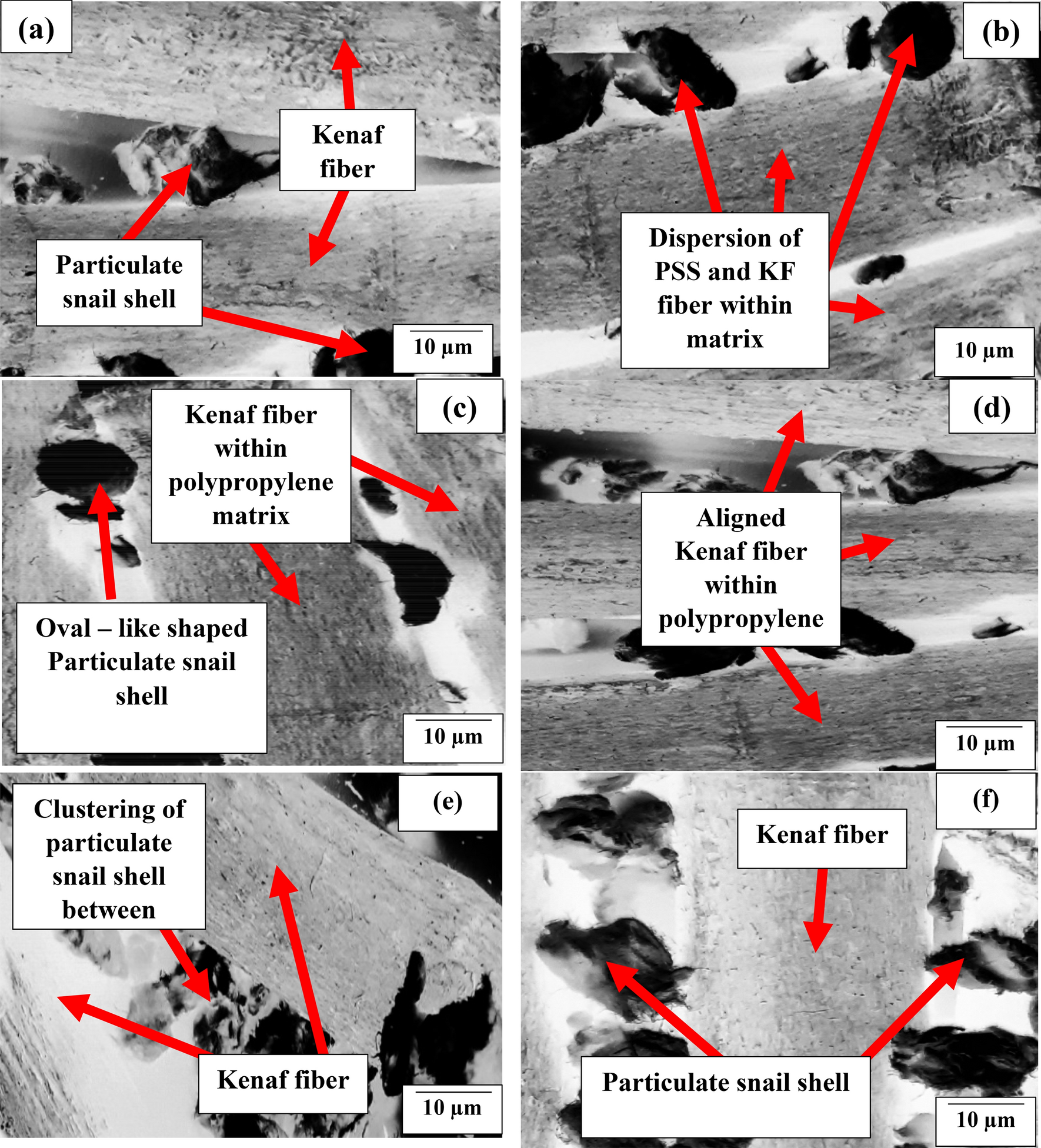

Microstructural image of polypropylene-PSS/KF composites developed, (a–d) reflects the images of mix 2 composites; (e–h) show the mix 5 composites containing 5 wt% of the particulate; (i–l) present morphological representation of the mix 10 composite prepared with 10 wt% PSS.
