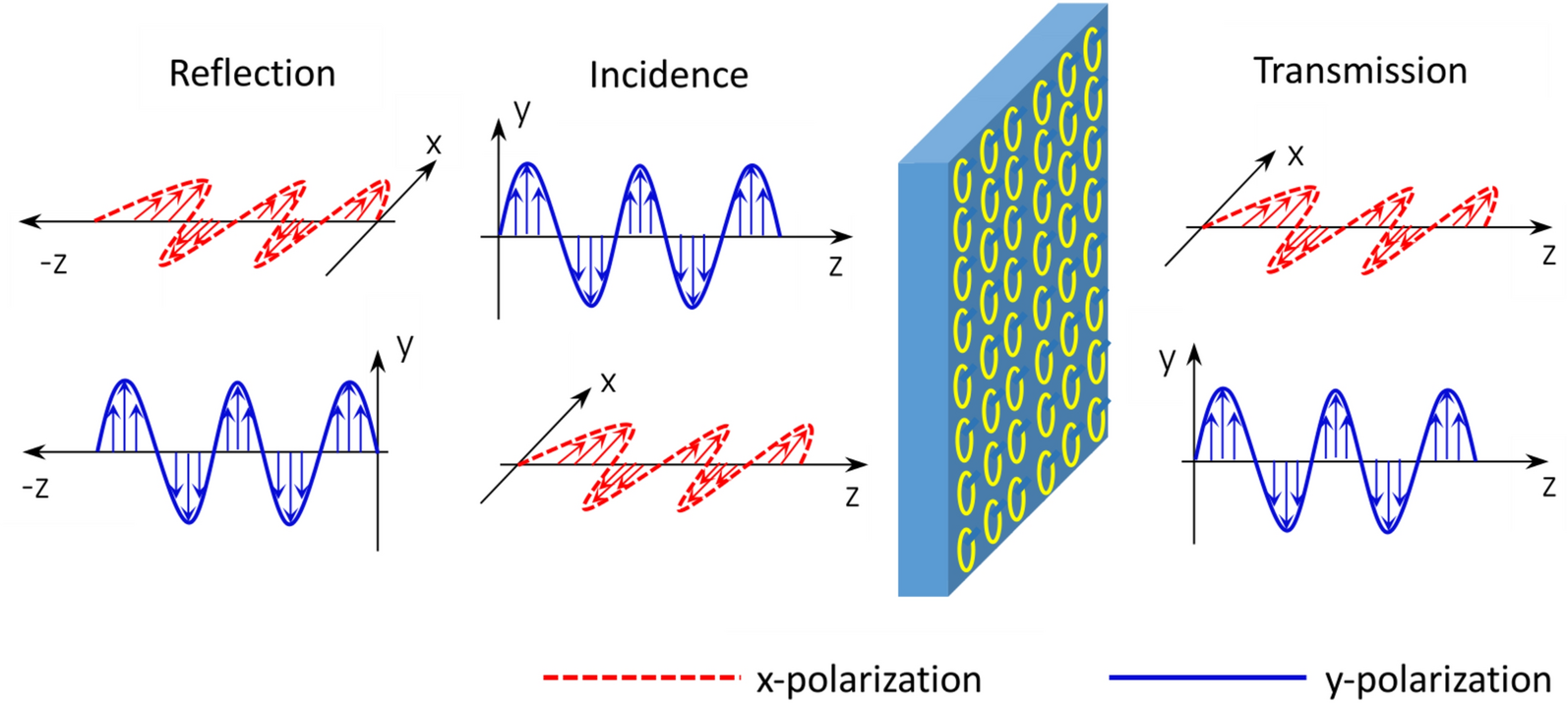

Figure 2
Operating principle diagram of the polarization conversion of the proposed MS. An x-polarized incident wave can be reflected and transmitted in the form of a y-polarized wave at the working frequencies, and a y-polarized wave can be reflected and transmitted as an x-polarized wave at the working frequencies. That is, the reflected wave and transmitted waves are converted into the orthogonal waves at the working frequencies. The red dotted line indicates the x-polarized wave, and the blue real line indicates the y-polarized wave.
