Figure 6
From: Naked eye direction of arrival estimation with a Fresnel lens

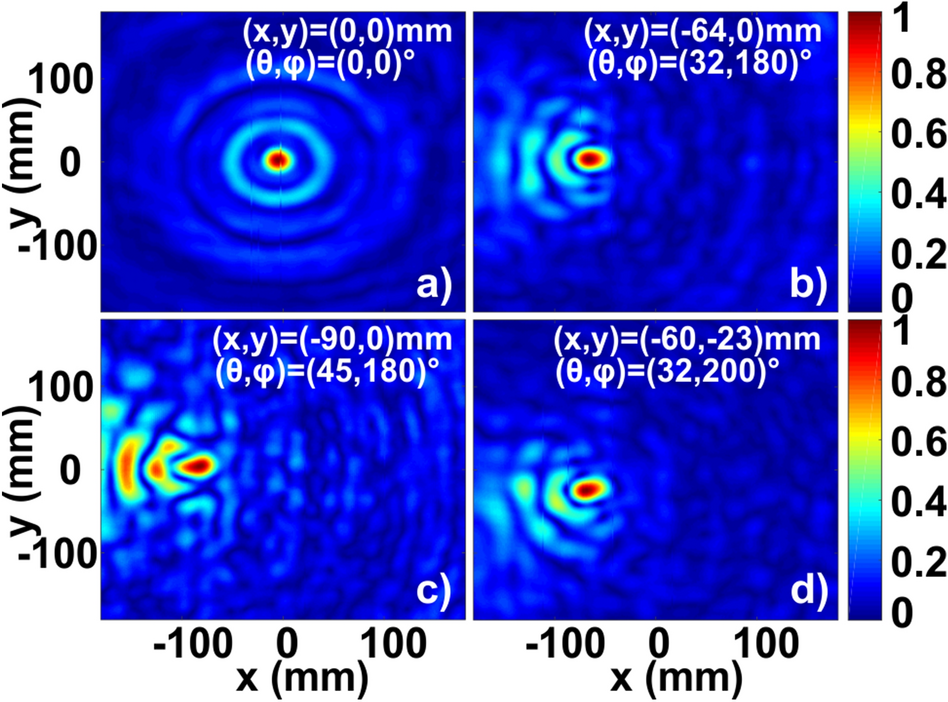

Experimental results—field intensity distributions (normalized to maximum) at the focal plane. The angle of incidence and the focal spot location are indicated in the legends.
