Figure 4
From: Strain-induced quantum Hall phenomena of excitons in graphene

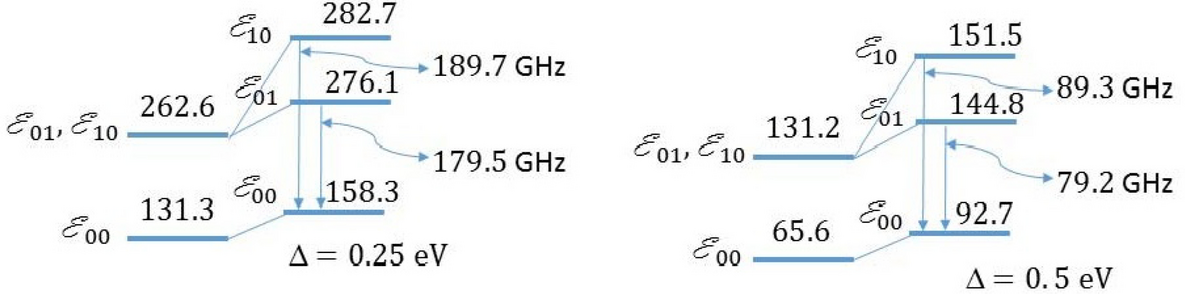

Schematic diagrams for the energy levels and transitions of the direct PME in the strained monolayer graphene. Calculations performed using RK potential for the value of magnetic length l that corresponds to \(B/e=50\ \mathrm {T}\) and for \(\Delta =0.25\) eV and \(\Delta =0.5\) eV. The energy levels are given in meV. The diagrams are not drawn to scale.
