Figure 8

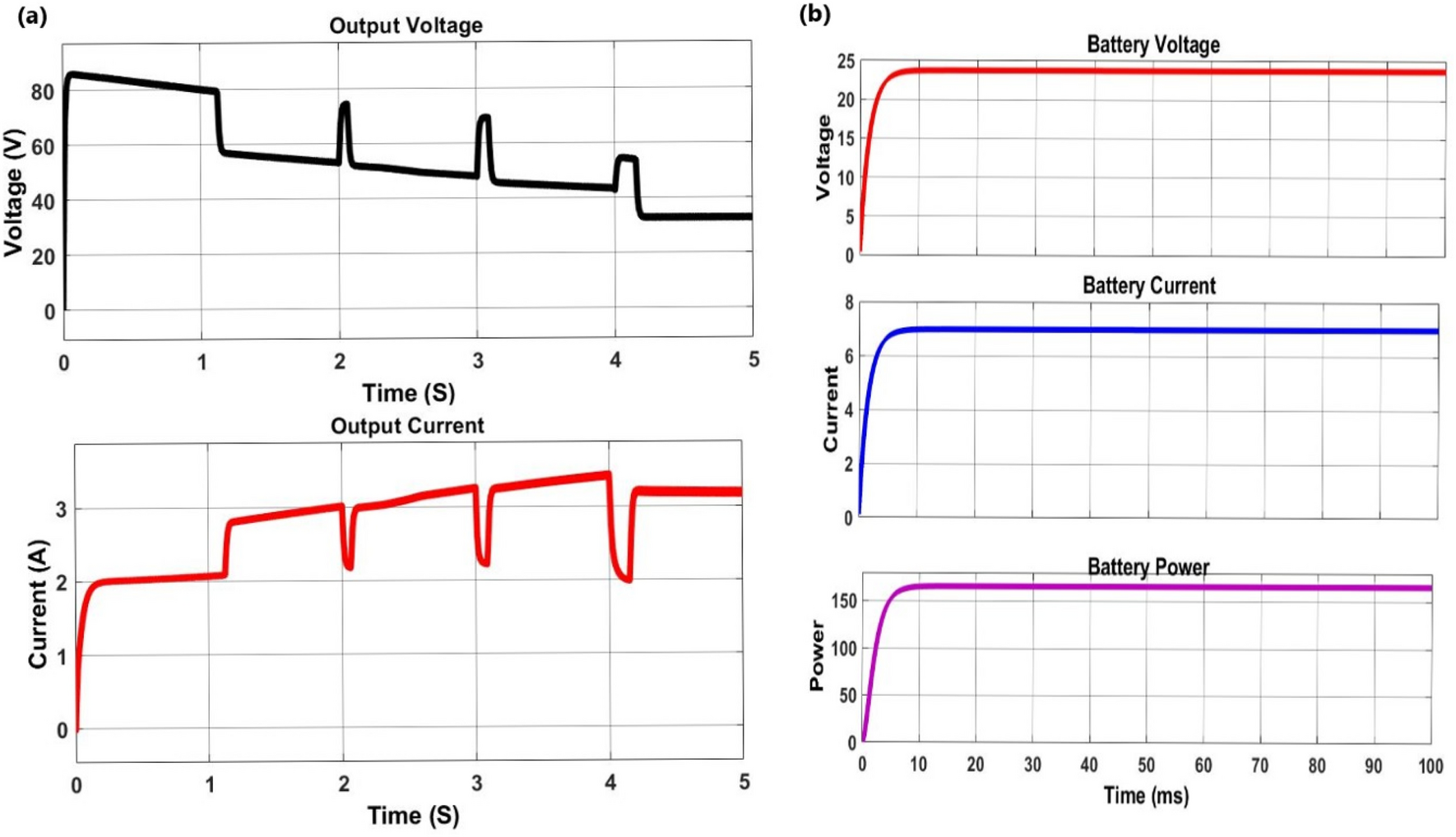

The converter output voltage, and output current are presented because as the converter is dealing with a large load (battery) step from the discontinuous current mode (DCM) to the continuous current mode (CCM), therefore; the transient condition is important (a). Battery (Load) current, voltage, and power (b).
