Figure 6

From: Expression of genes and localization of enzymes involved in polyunsaturated fatty acid synthesis in rabbit testis and epididymis

Figure 6

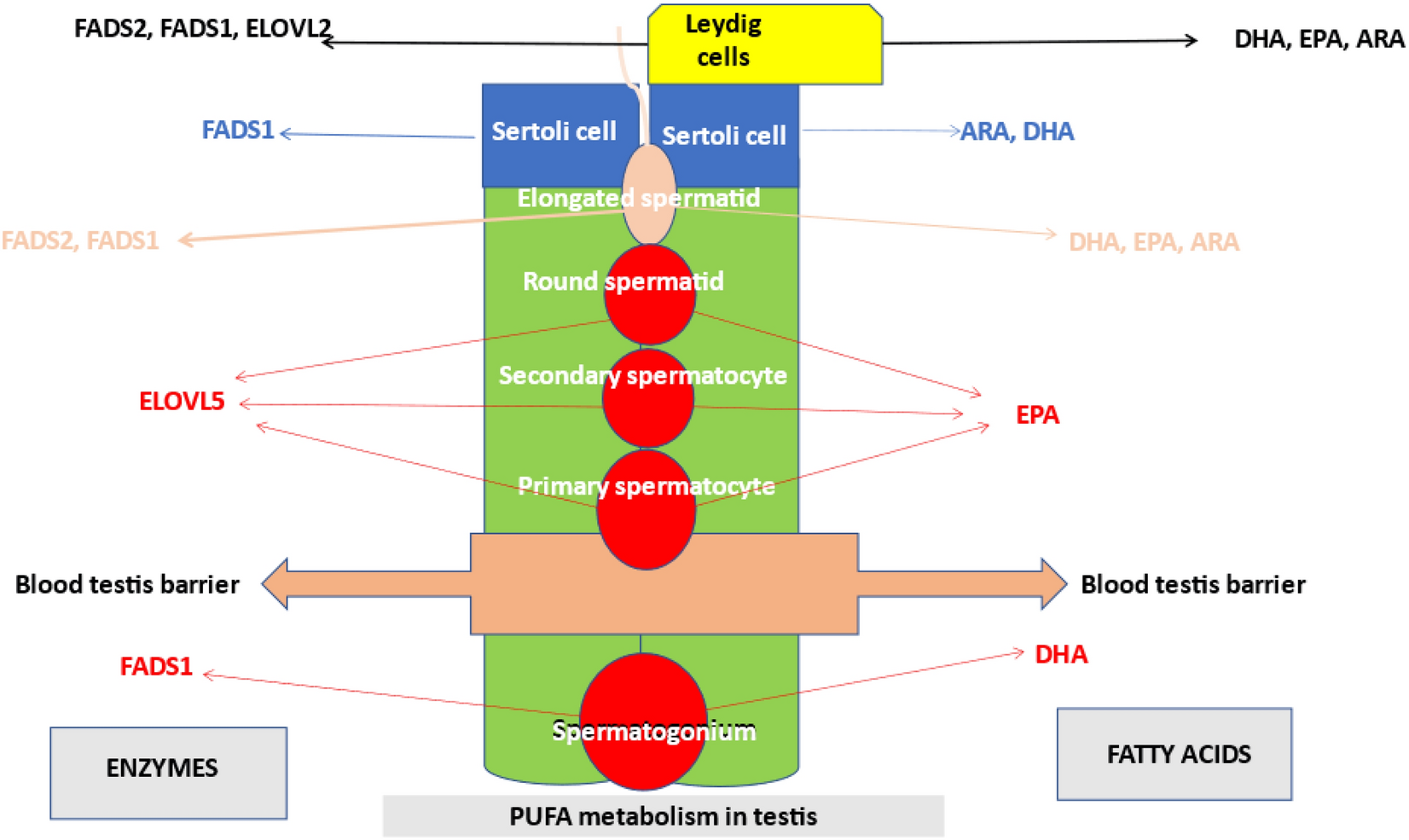

Schematic representation of enzyme and fatty acid localization in testis cells. The localization of the enzymes studied in germ, Sertoli and Leydig cells is shown on the left, whereas the localization of fatty acids is shown on the right. ELOVL2: elongase 2; ELOVL5: elongase 5; FADS1: Δ5-desaturase; FADS2: Δ6-desaturase; DHA: docosahexaenoic acid; EPA: eicosapentaenoic acid; ARA: arachidonic acid.
