Figure 3
From: Fatigue-free visual perception of high-density super-multiview augmented reality images

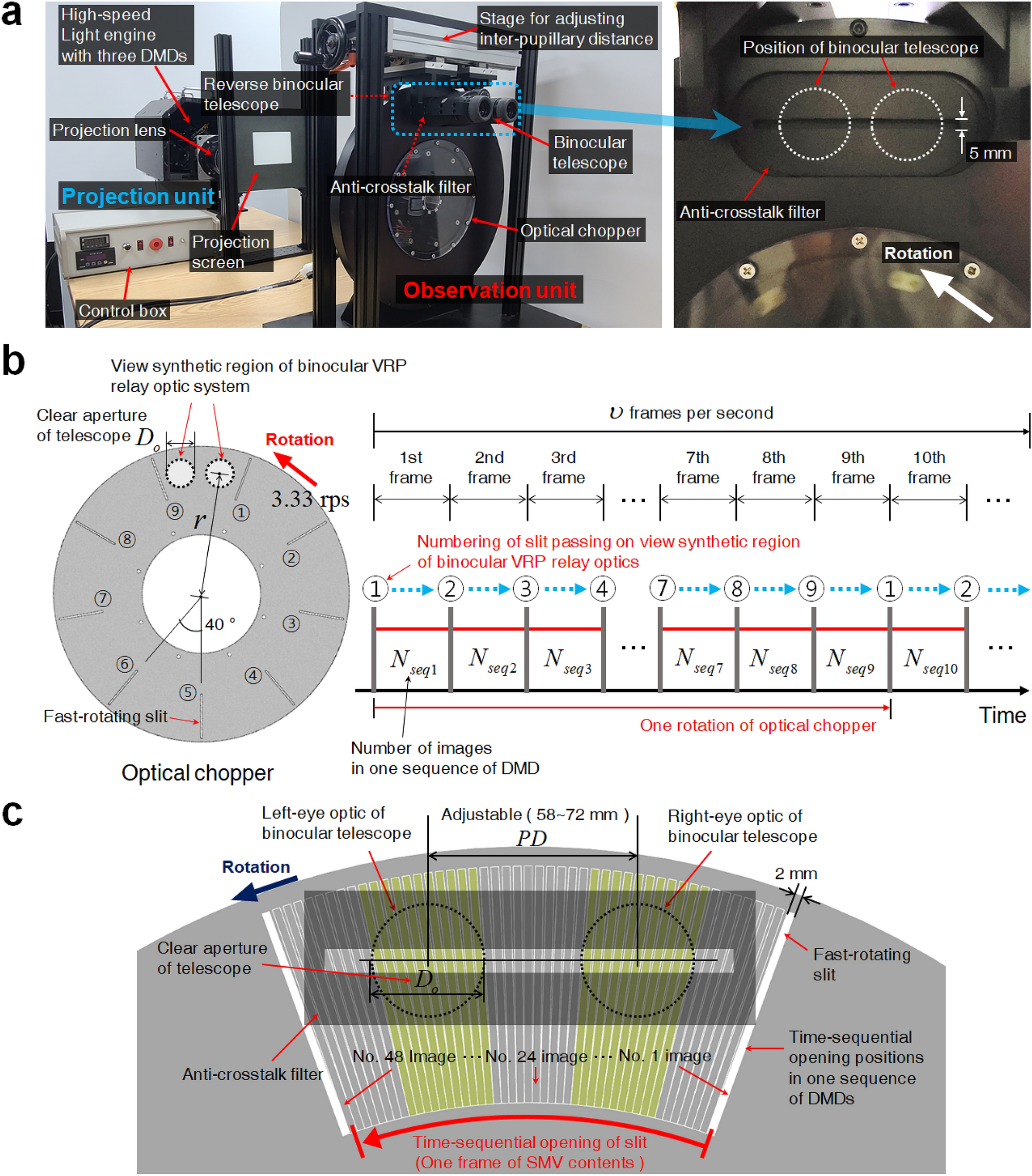

Proposed BTS HDSMV projection system. (a) Experimental setup for the projection unit of the devised BTS HDSMV projection. The fast-moving slit in Fig. 2 is implemented using an optical chopper with nine slits. (b) Synchronization between the rapidly rotating slit of the optical chopper and the frames of the DMDs. (c) Configuration for a single frame of an SMV image.
