Figure 5
From: Hypsometric changes in urban areas resulting from multiple years of mining activity

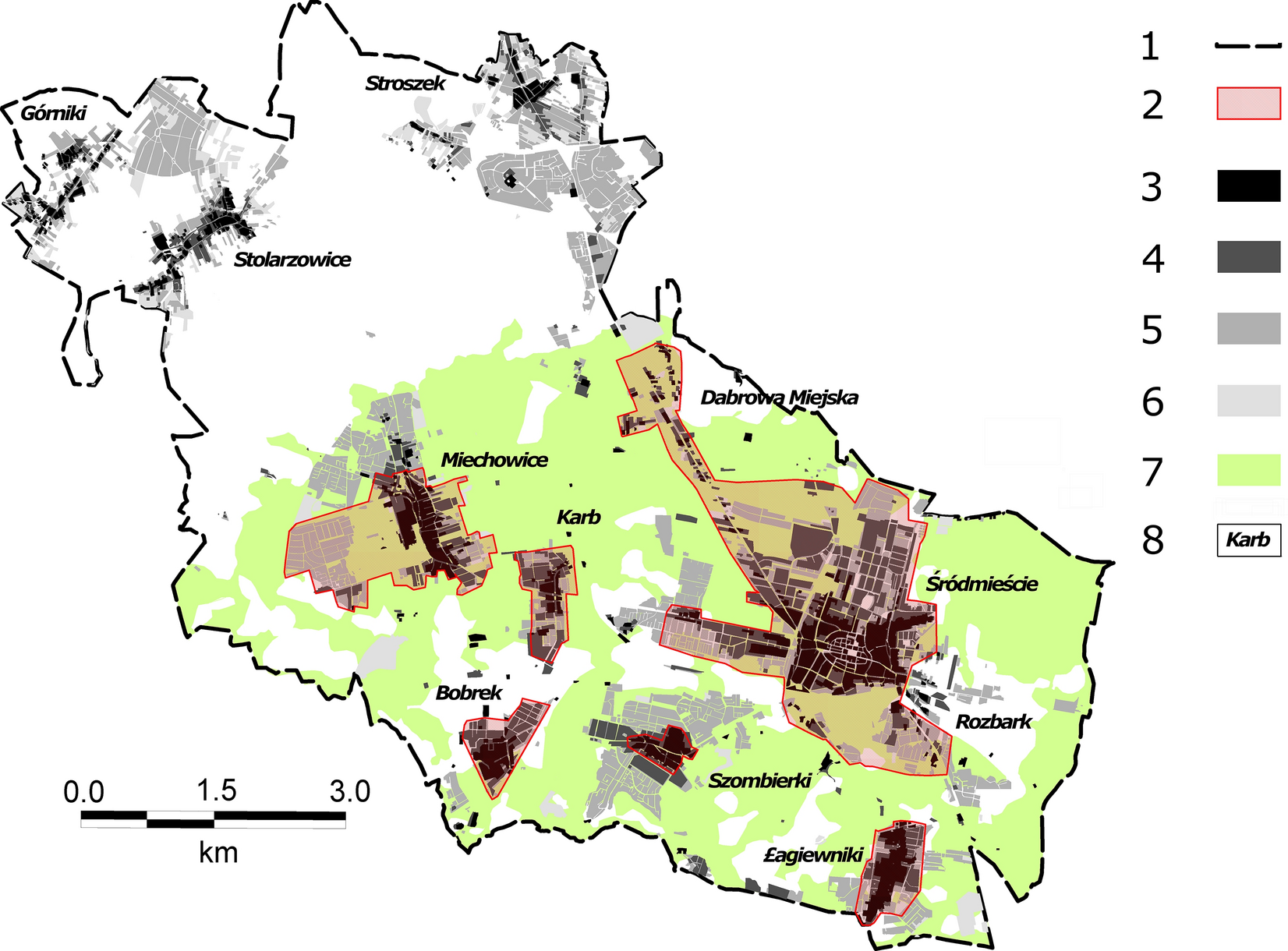

Land subsidence in the Bytom area in the years 1883–2011: 1—contemporary city limits; 2—built-up areas where mining damage and demolitions occurred; 3—built-up areas (as at 1883); 4—built-up areas (as at 1934); 5—built-up areas (as at 1994); 6—built-up areas (as at 2011); 7—range of land subsidence in the period 1883–2011; 8—city districts.
