Figure 2

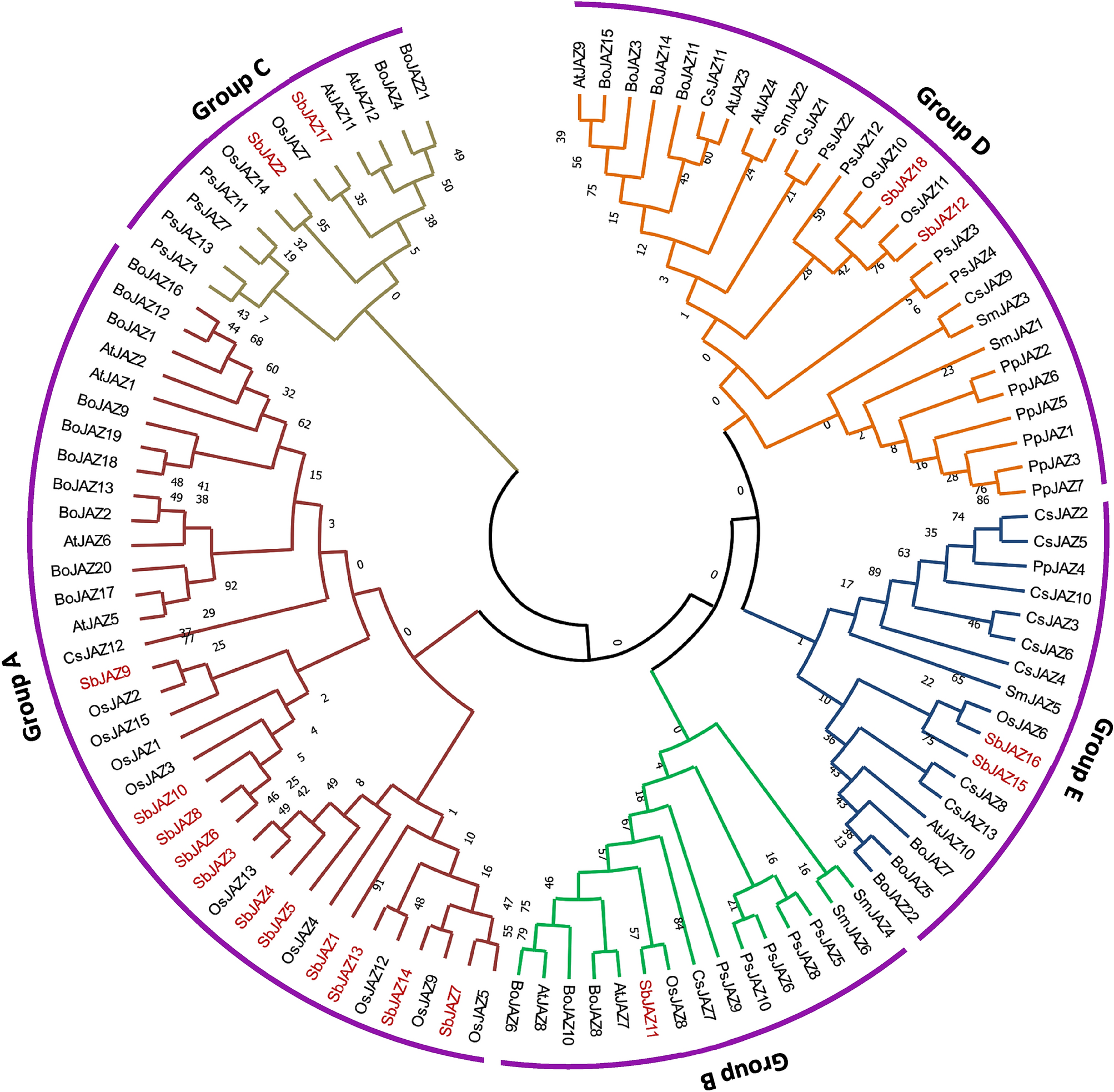

Phylogenetic analysis of the JAZ gene family. The circular tree represents the evolutionary relationship between the sorghum JAZ protein family with those in bryophyte, lycopodiophyte, gymnosperms, monocots and eudicots. The tree was generated by MEGAX using the Maximum Likelihood method based on the Poisson correction model using 1000 bootstrap values40,41. The analysis involved 106 amino acid sequences and they are divided into five classes. Species abbreviations used for phylogeny are as follows. At: Arabidopsis thaliana, Bo: Brassicae oleracea; Cs: Camellia sinensis; Os: Oryza sativa; Pp: Physcomitrella patens; Ps: Picea sitchensis; Sb: Sorghum bicolor and Sm: Selaginella moellendorffii.
