Figure 2
From: The elimination of stressed induced light leakage for in-plane-switching LCD

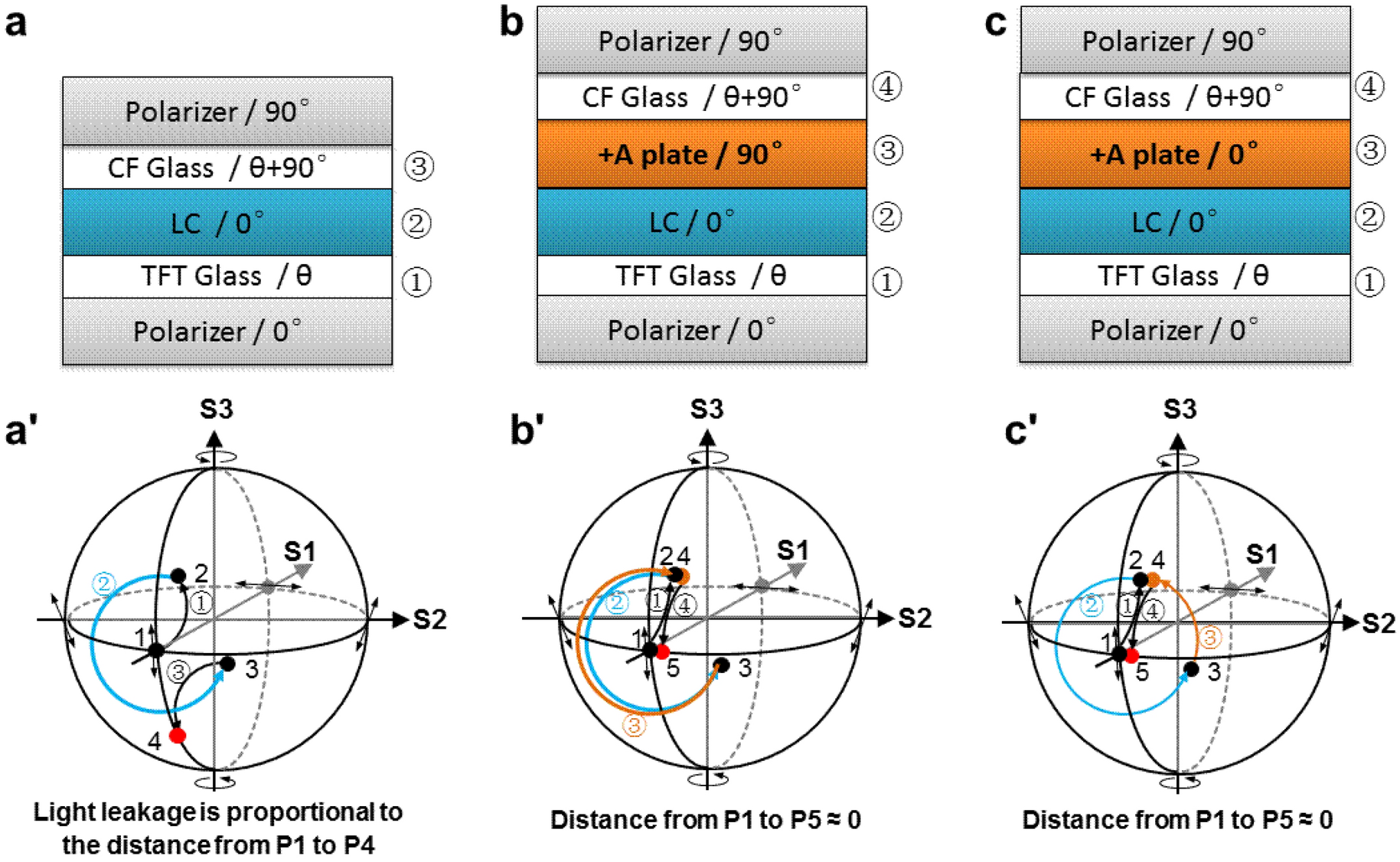

The compensation principle of the new IPS. (a) The structure of normal IPS. (a') The stressed LL principle of normal IPS. (b) The structure of compensation mode 1. (b') The compensation mechanism of compensation mode 1. (c) The structure of compensation mode 2. (c') The compensation mechanism of compensation mode 2.
