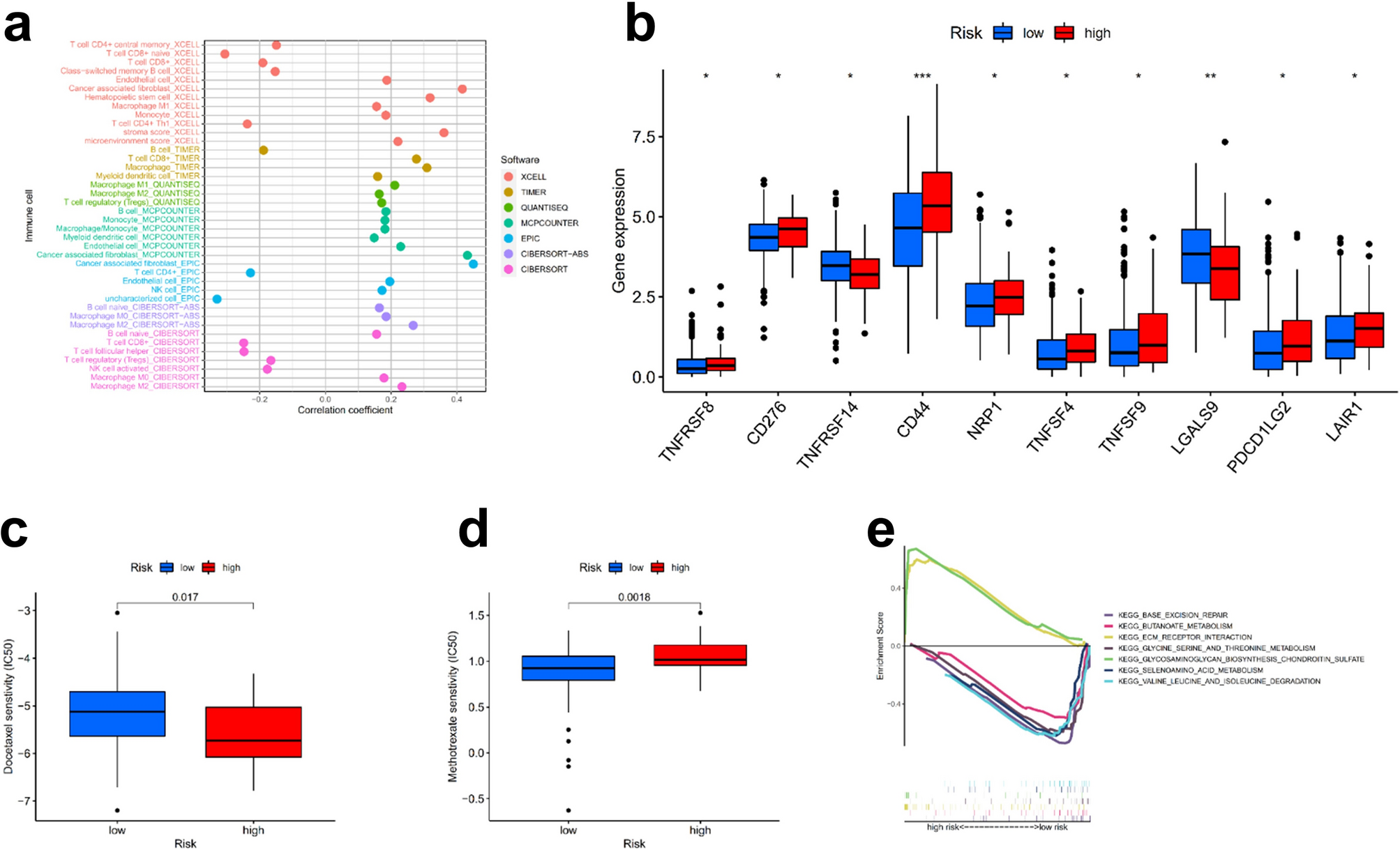

Figure 5
Risk assessment model evaluation of tumour-infiltrating cells, immunosuppressive molecules and biological function. Spearman correlation analysis was used in the training set to demonstrate differences in the levels of tumour-infiltrating cells across different risk groups, and the results are shown in a lollipop diagram (a). Differentially expressed immune checkpoints in the high- and low-risk groups (b). Drug sensitivity to docetaxel (c) and methotrexate (d) in the high- and low-risk groups. GSEA of the training set (e).
