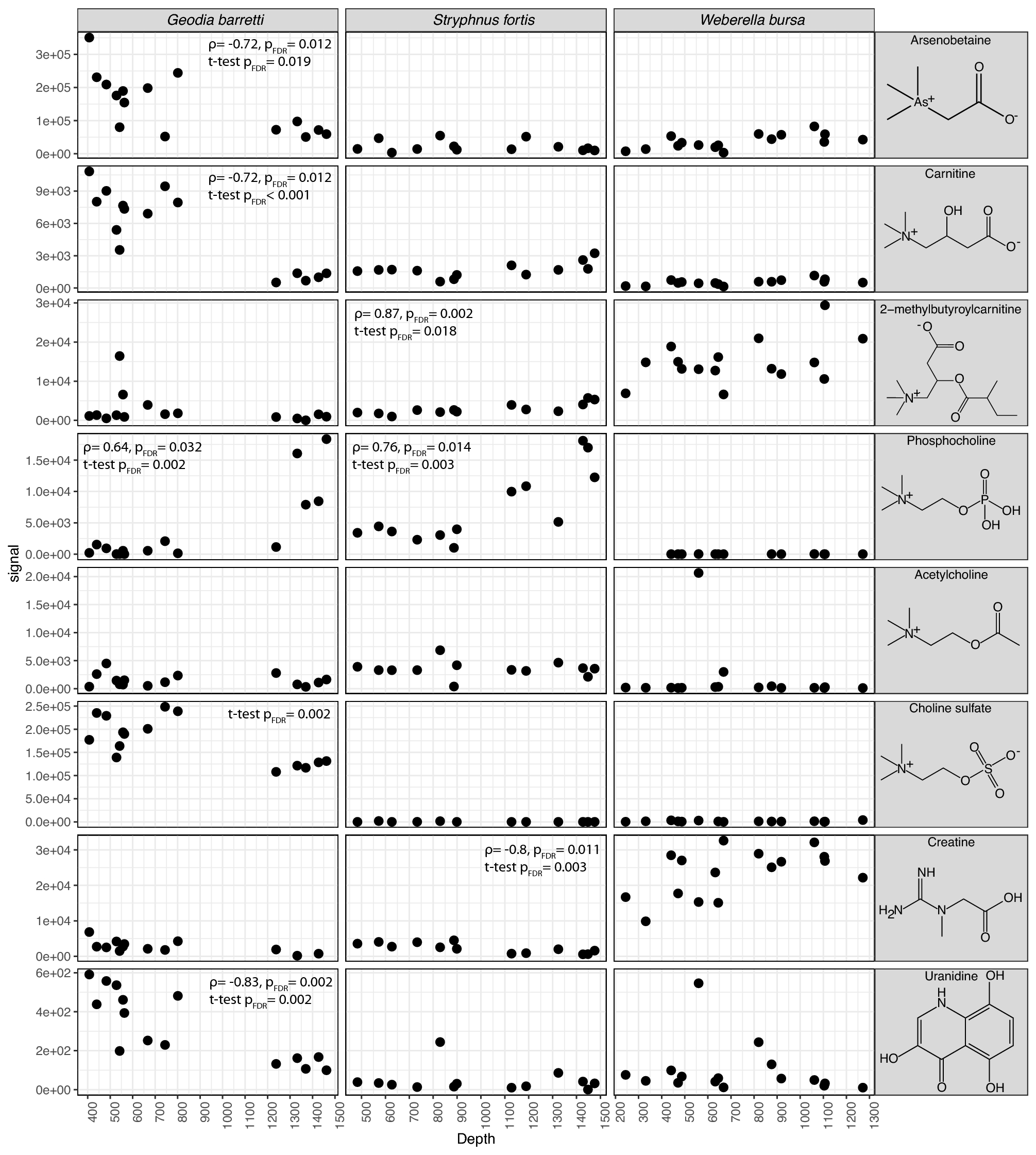

Figure 6
From: Oceanographic setting influences the prokaryotic community and metabolome in deep-sea sponges
Signal intensities of annotated VIP compounds plotted against sample depth. Correlation tests and t-tests were performed to assess all compounds variation with depth. Significant results (pFDR < 0.05) were annotated in the plot, correlation (ρ and pFDR) on top, and t-test (pFDR) below.
