Figure 10
From: Characterization technique of gases permeation properties in polymers: H2, He, N2 and Ar gas

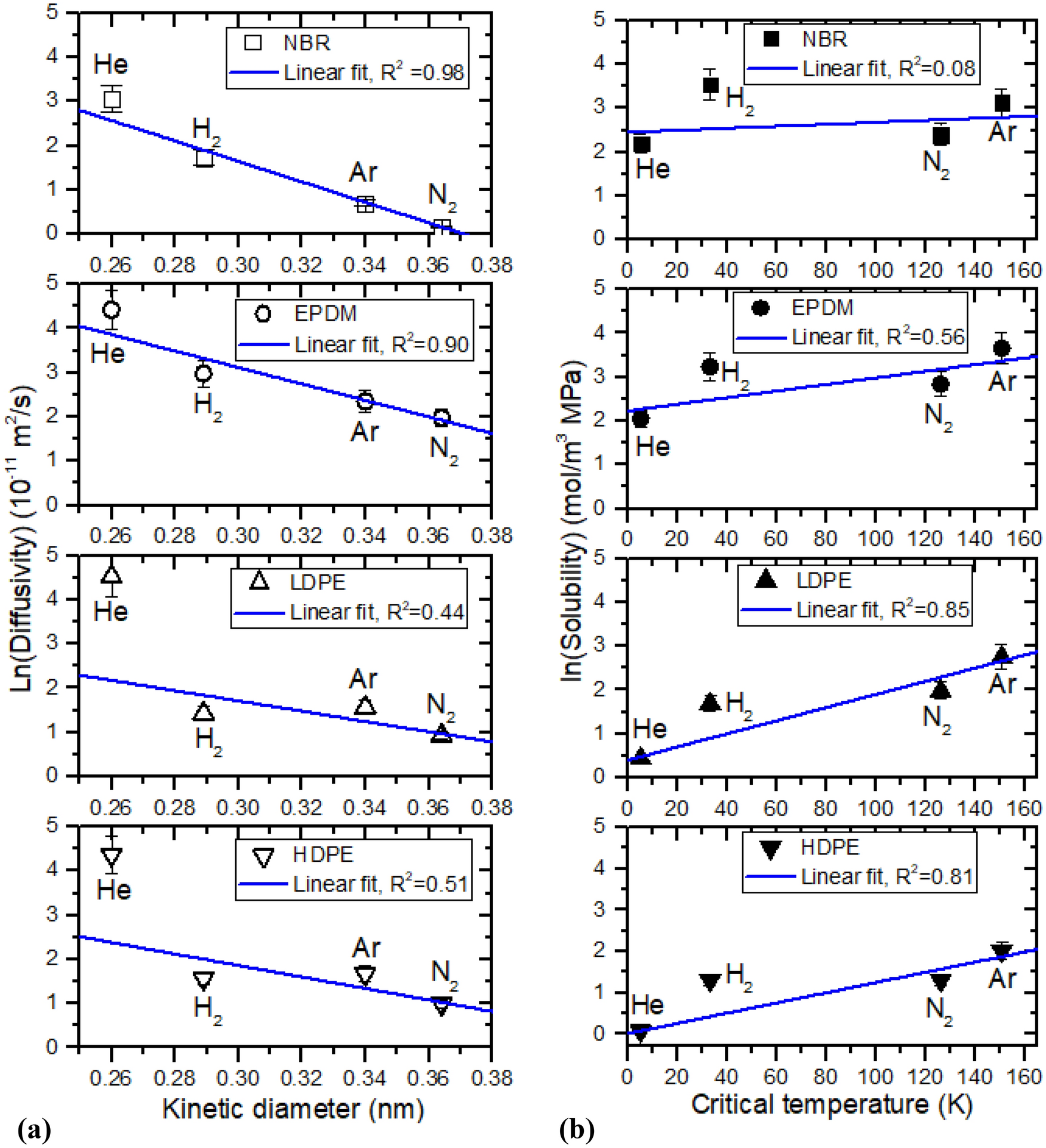

Linear correlation between (a) logarithmic diffusivity and kinetic diameter, (b) logarithmic solubility and critical temperature of gas molecules in NBR, EPDM, LDPE and HDPE polymers.
