Figure 6
From: Characterization technique of gases permeation properties in polymers: H2, He, N2 and Ar gas

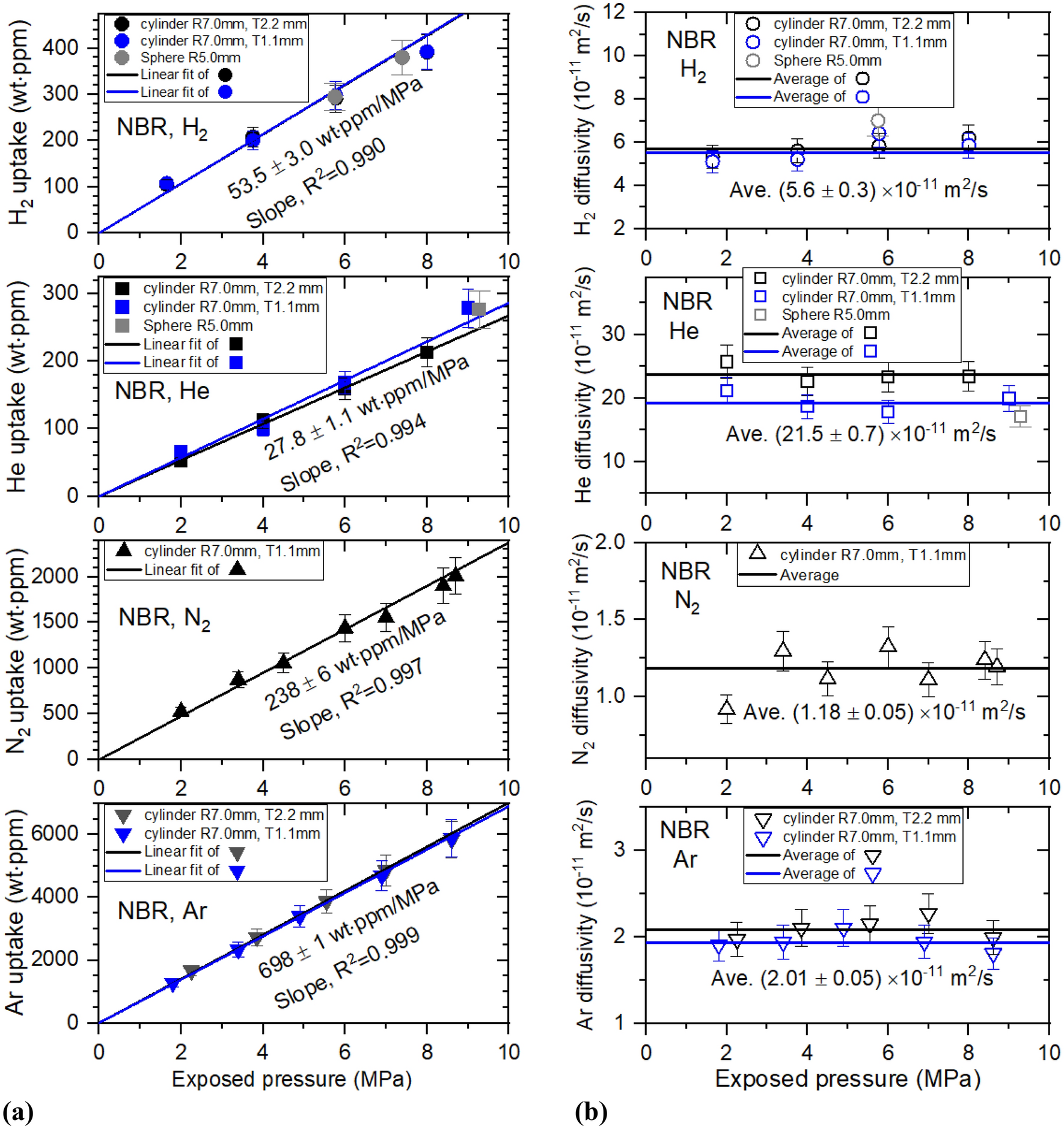

(a) Gas uptake (\({C}_{\infty }\)) and (b) diffusivity (D) versus exposed pressure for four gases in cylindrical-shaped NBR with different thicknesses. R and T indicate the radius and thickness, respectively, of cylindrical NBR.
