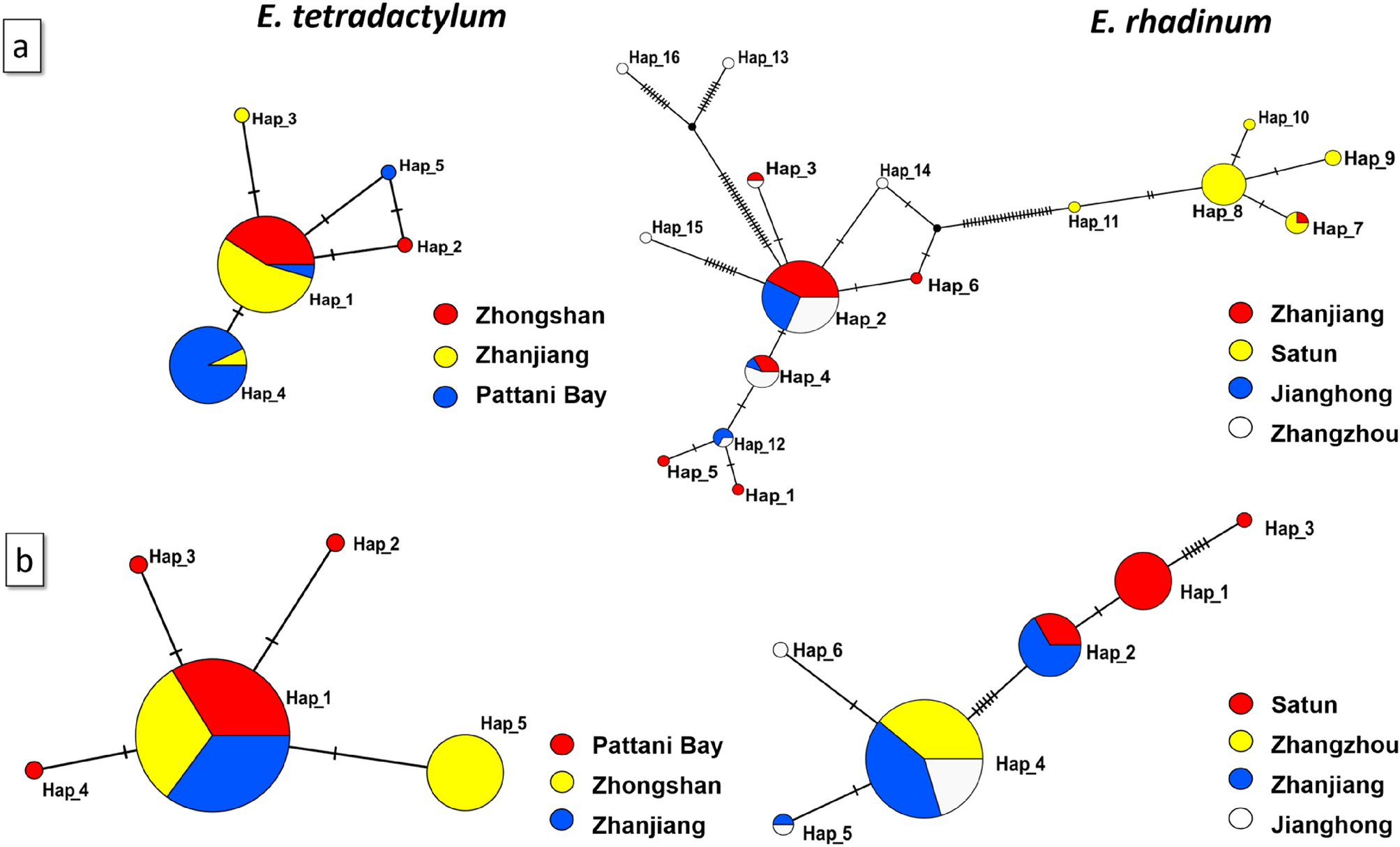

Figure 2

The unrooted TCS haplotype networks were constructed based on the haplotypes of CO1 (a) and 16s rRNA (b) of Eleutheronema tetradactylum (left) and Eleutheronema rhadinum (right). Haplotype frequency was related to the size of the circle. Different colors within the nodes refer to various sampling sites.
