From: Structured pathways in the turbulence organizing recent oil spill events in the Eastern Mediterranean

Figure 2

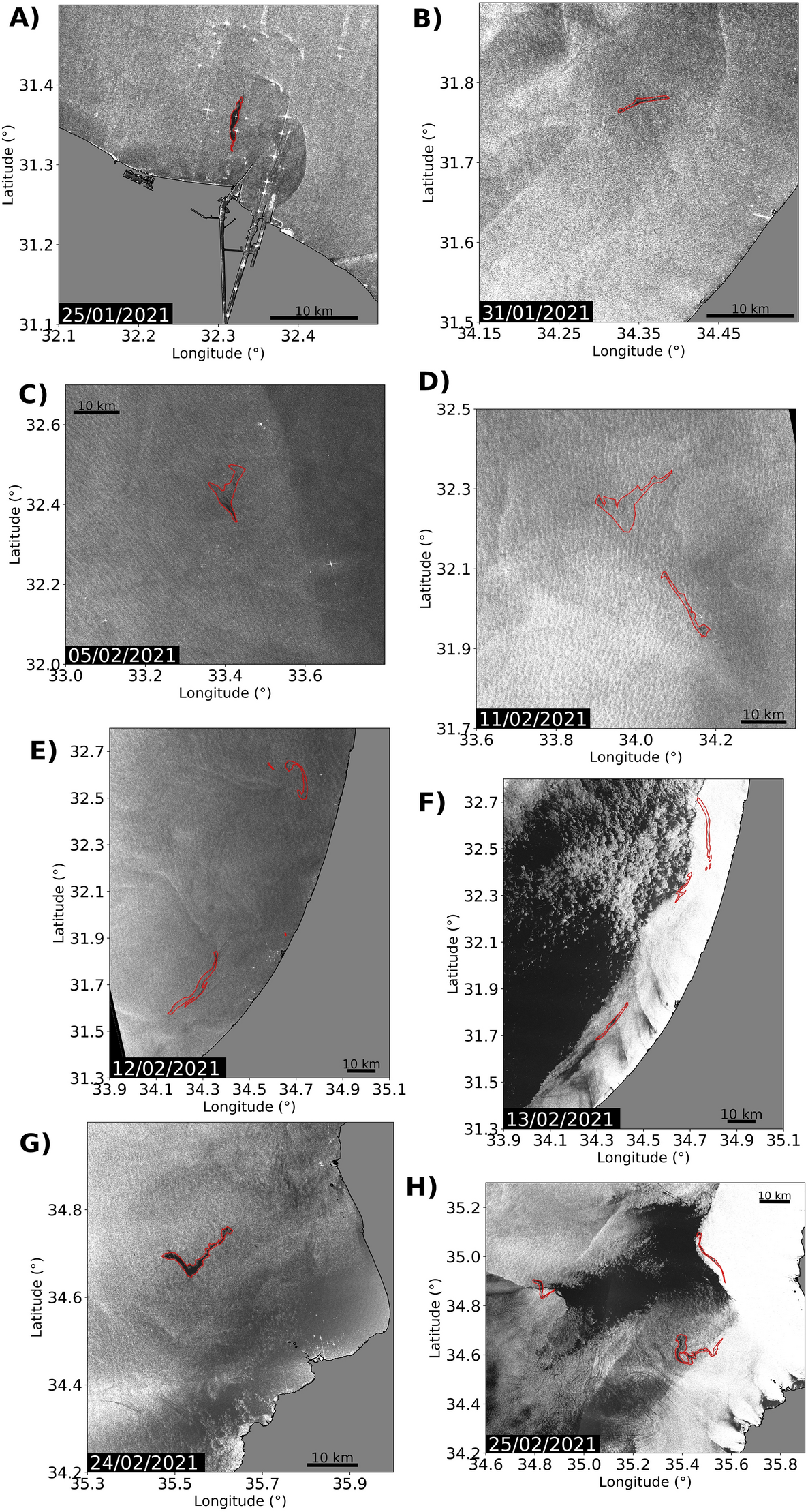

Satellite radar images. (a) Sentinel 1A on the 25th January 2021; (b) Sentinel 1A on the 31st January 2021; (c) Sentinel 1A on the 5th February 2021; (d) Sentinel 1B on the 11th February 2021; (e) Sentinel 1A on the 12th February 2021; (f) Sentinel 1A on the 13th February 2021; (g) Sentinel 1A on the 24th February 2021; (h) Sentinel 1A on the 25th February 2021. The figure has been created using python 3.8.10 and matplotlib module 3.1.2 (https://www.python.org/downloads/release/python-3810/). Coastlines have been obtained from https://osmdata.openstreetmap.de/data/land-polygons.html. The satellite observations vector representations have been created using QGIS software 3.10 version (https://qgis.org/) and the SAR processed images.
