Figure 3
From: Virtual simulation of the biomechanics of the abdominal wall with different stoma locations

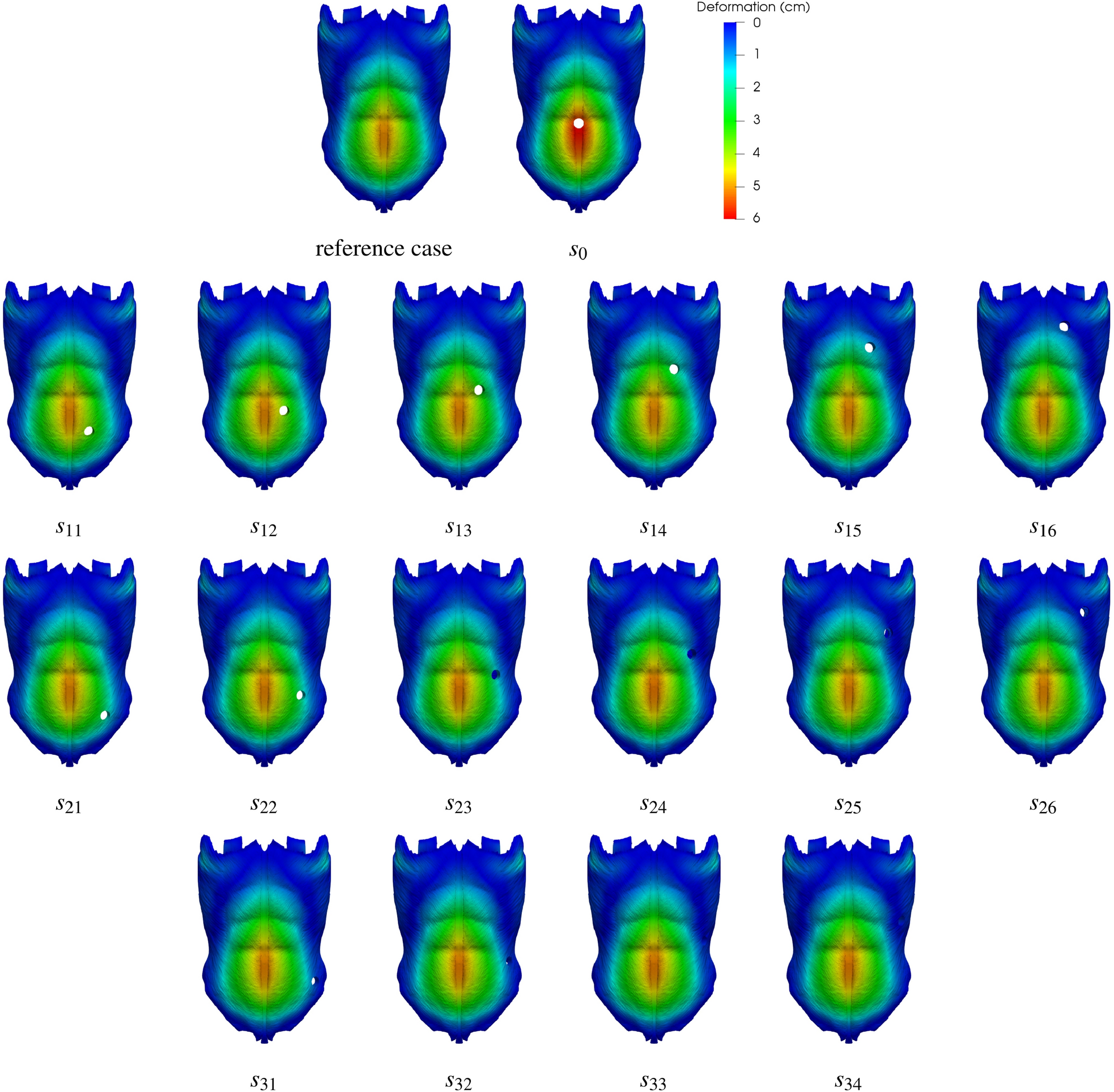

The predicted deformation distributions are plotted on the base (undeformed) geometry of the abdominal wall for all the cases investigated, that is, the reference case (no stoma) and the seventeen stoma locations. In all cases, the results correspond to the simulations with the maximum value of the applied intraabdominal pressure, \(P=20\) kPa.
