Figure 4
From: Effects of midsole cushioning stiffness on Achilles tendon stretch during running

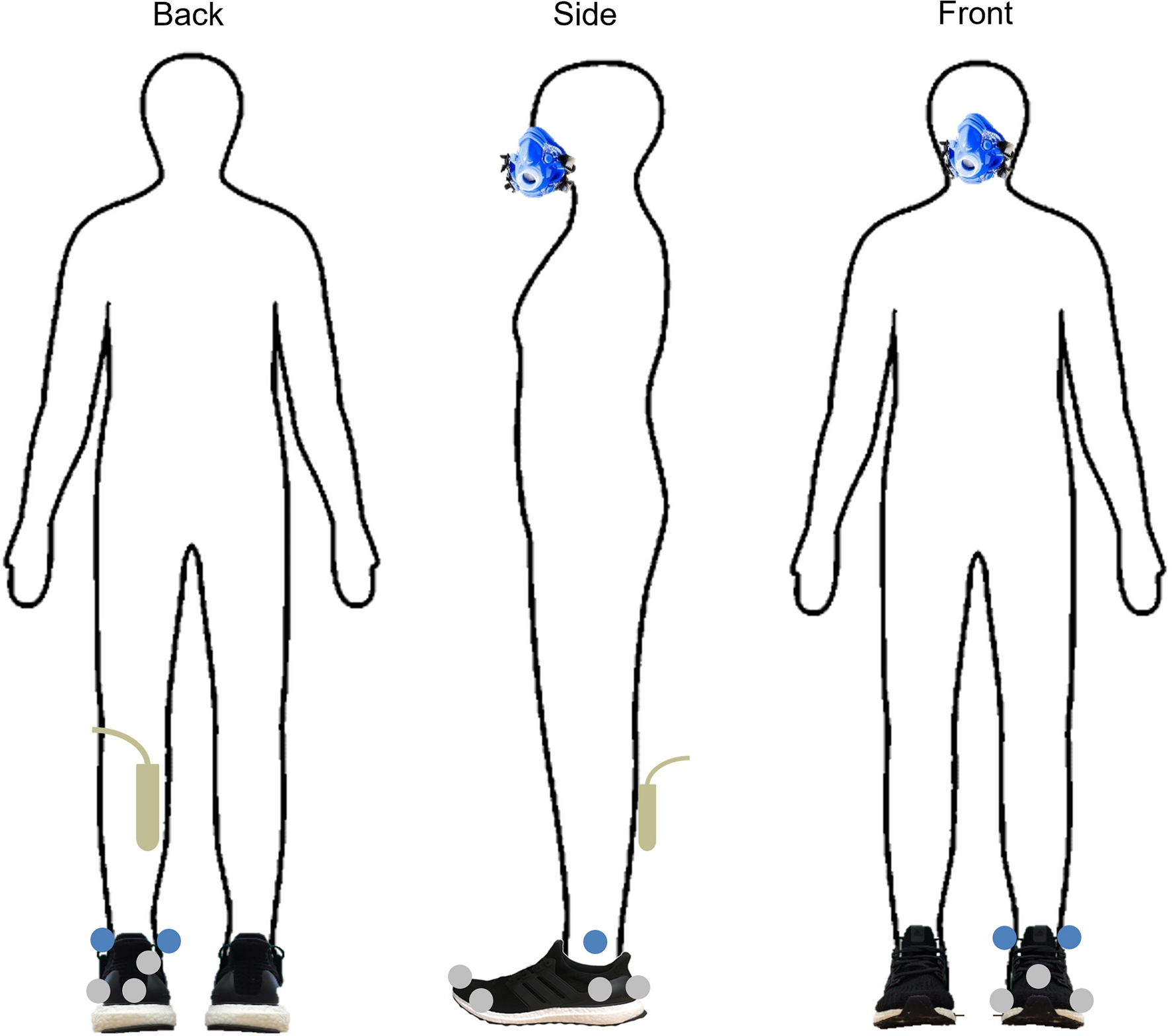

Schematic views of the back (left), side (middle) and front (right) view of the participant with all equipment attached during the running trials (motion capture markers, ultrasound probe and breathing mask). The grey markers remained on while the blue markers were removed during the running trials.
