From: High-throughput synthesis of CeO2 nanoparticles for transparent nanocomposites repelling Pseudomonas aeruginosa biofilms

Figure 3

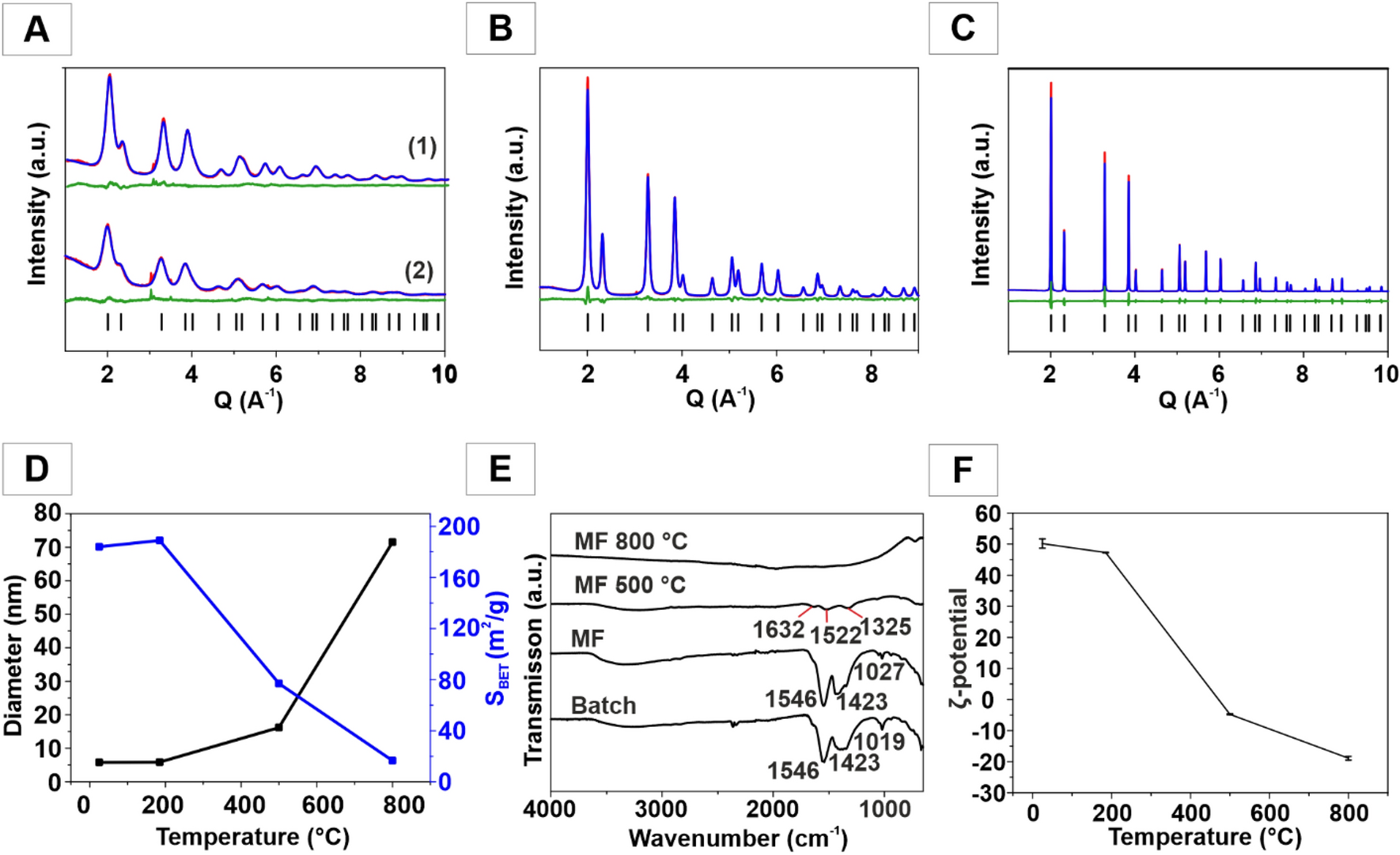

X-ray powder diffraction patterns with Rietveld refinements of CeO2 NPs obtained by batch synthesis (A1) and under segmented flow conditions (A2) after annealing for 5 h at 185 °C. (B) CeO2 annealed for 5 h at 500 °C and (C) 800 °C. Experimental data, Rietveld refinement and difference curve are shown as red, blue and green lines. Ticks indicate calculated positions of the Bragg intensities. (D) Average diameter and surface area as a function of annealing temperature. (E) FT-IR spectra of as-synthesized CeO2 NPs for different annealing temperatures and (F) ζ-potential as a function of annealing temperature.
