From: Computational identification of host genomic biomarkers highlighting their functions, pathways and regulators that influence SARS-CoV-2 infections and drug repurposing

Figure 2

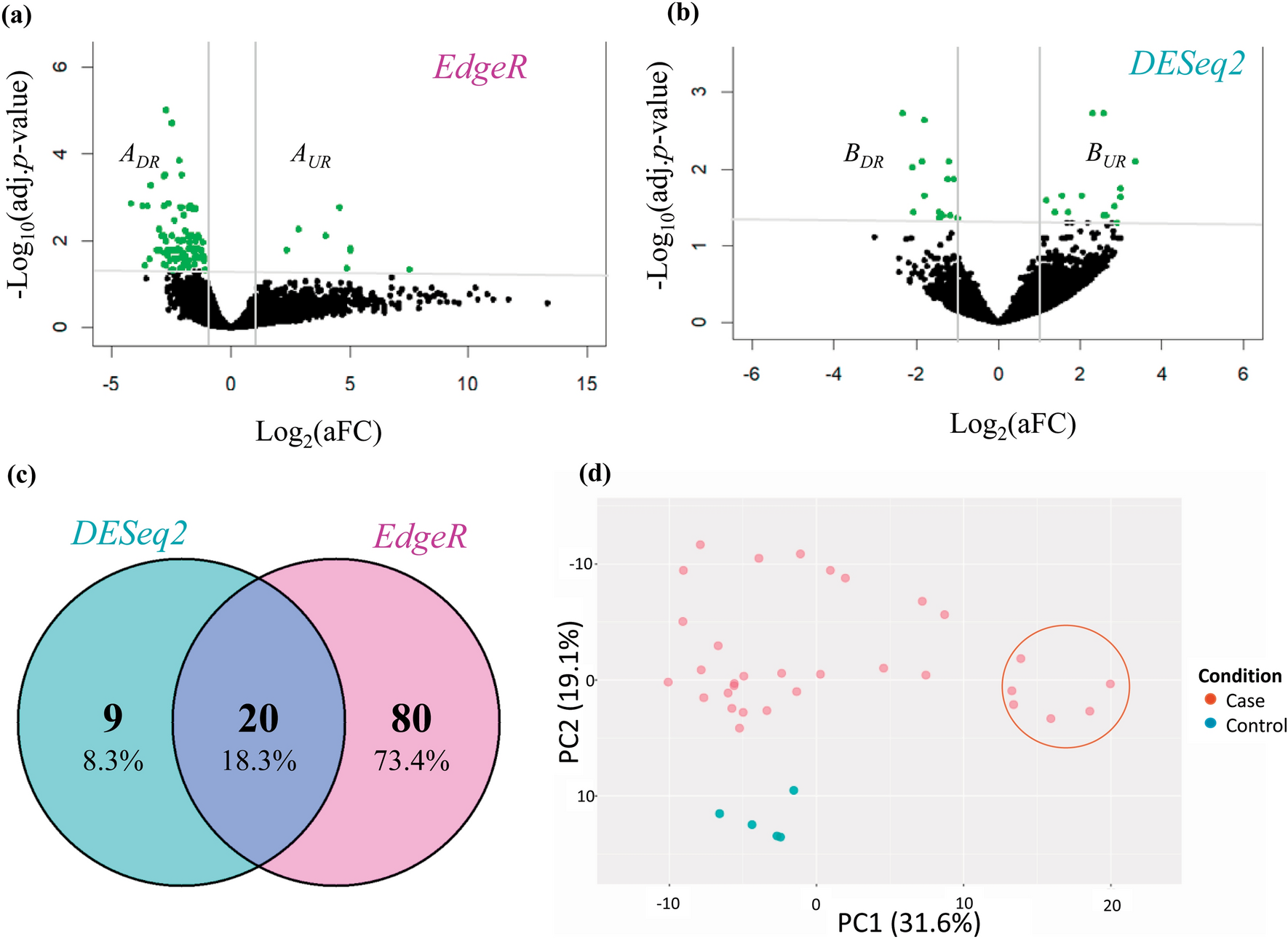

(a) Volcano plot of the DEGs by edgeR Method and (b) by DESeq2 method. (c) Venn diagram of two DEGs-sets identified by DESeq2 and edgeR to show the common and uncommon genes. (d) The scatter plot first two principal components (PCs) of DEGs to see their prognostic performance of the case vs control.
