Figure 1
From: New insights into the micromixer with Cantor fractal obstacles through genetic algorithm

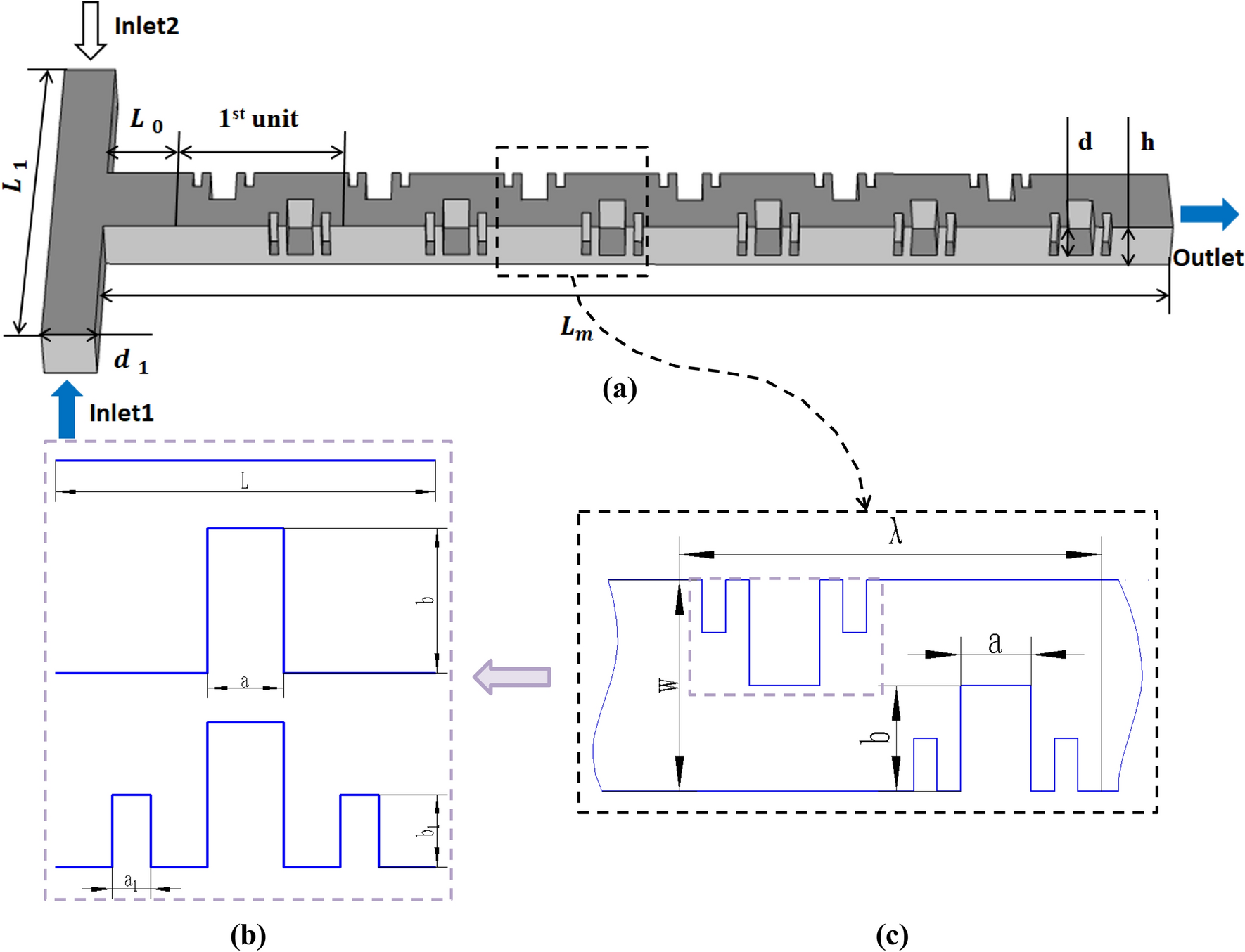

Micromixer model, (a) three-dimensional image of micromixer based on Cantor fractal principle, (b) baffle structure based on Cantor fractal principle, (c) design variable parameters of Cantor fractal baffle in mixing unit.
