From: Conformational control of two-dimensional gold nanoparticle arrays in a confined geometry within a vesicular wall

Figure 1

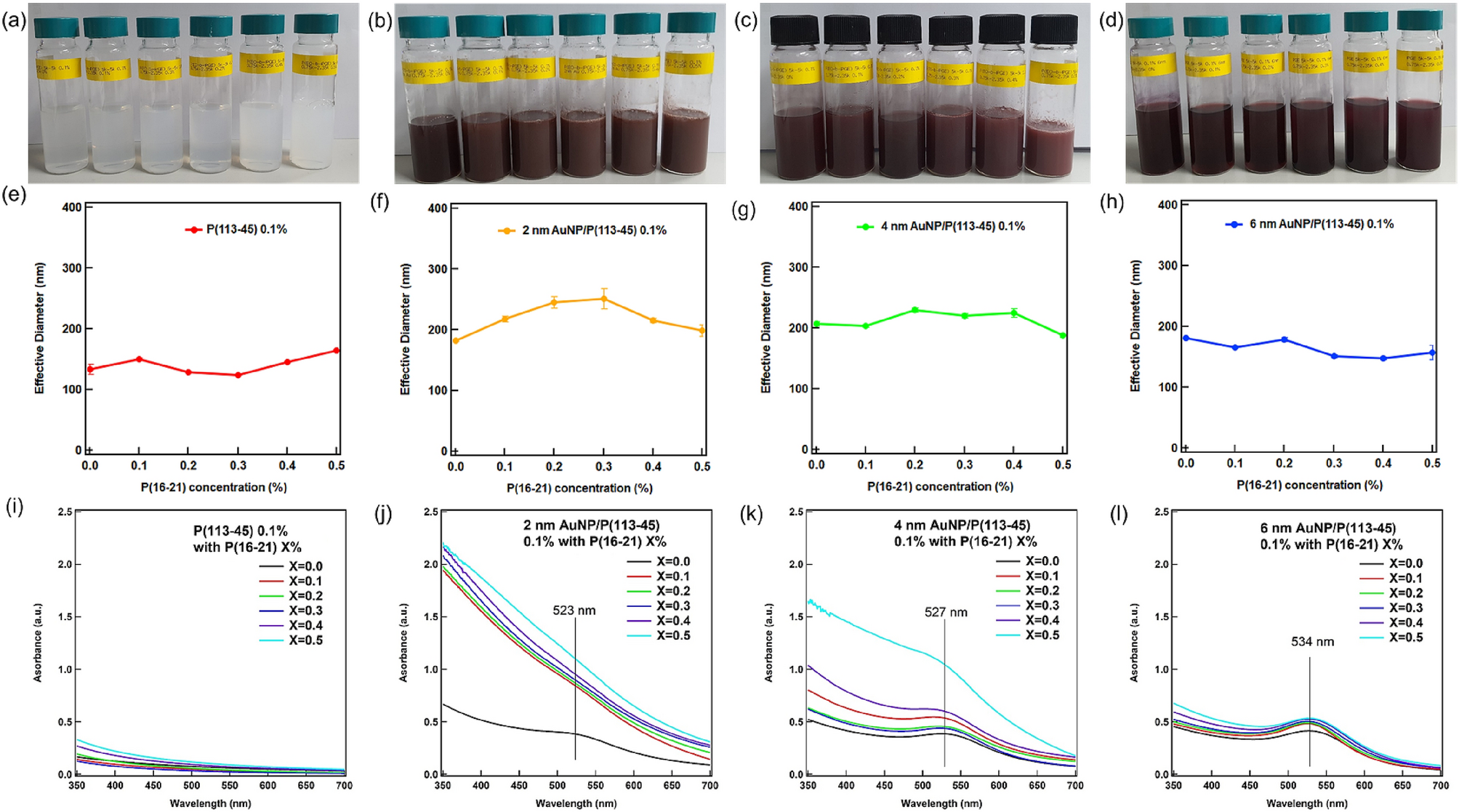

Basic characteristics of the diblock polymer mixtures. Visual inspection of the P(113-45)/P(16-21) mixtures with (a) no AuNPs, (b) 2 nm AuNPs, (c) 4 nm AuNPs, and (d) 6 nm AuNPs. DLS results of the P(113-45)/P(16-21) mixtures with (e) no AuNPs, (f) 2 nm AuNPs, (g) 4 nm AuNPs, and (h) 6 nm AuNPs. UV–Vis spectra of the P(113-45)/P(16-21) mixtures with (i) no AuNPs, (j) 2 nm AuNPs, (k) 4 nm AuNPs, and (l) 6 nm AuNPs.
