Figure 3

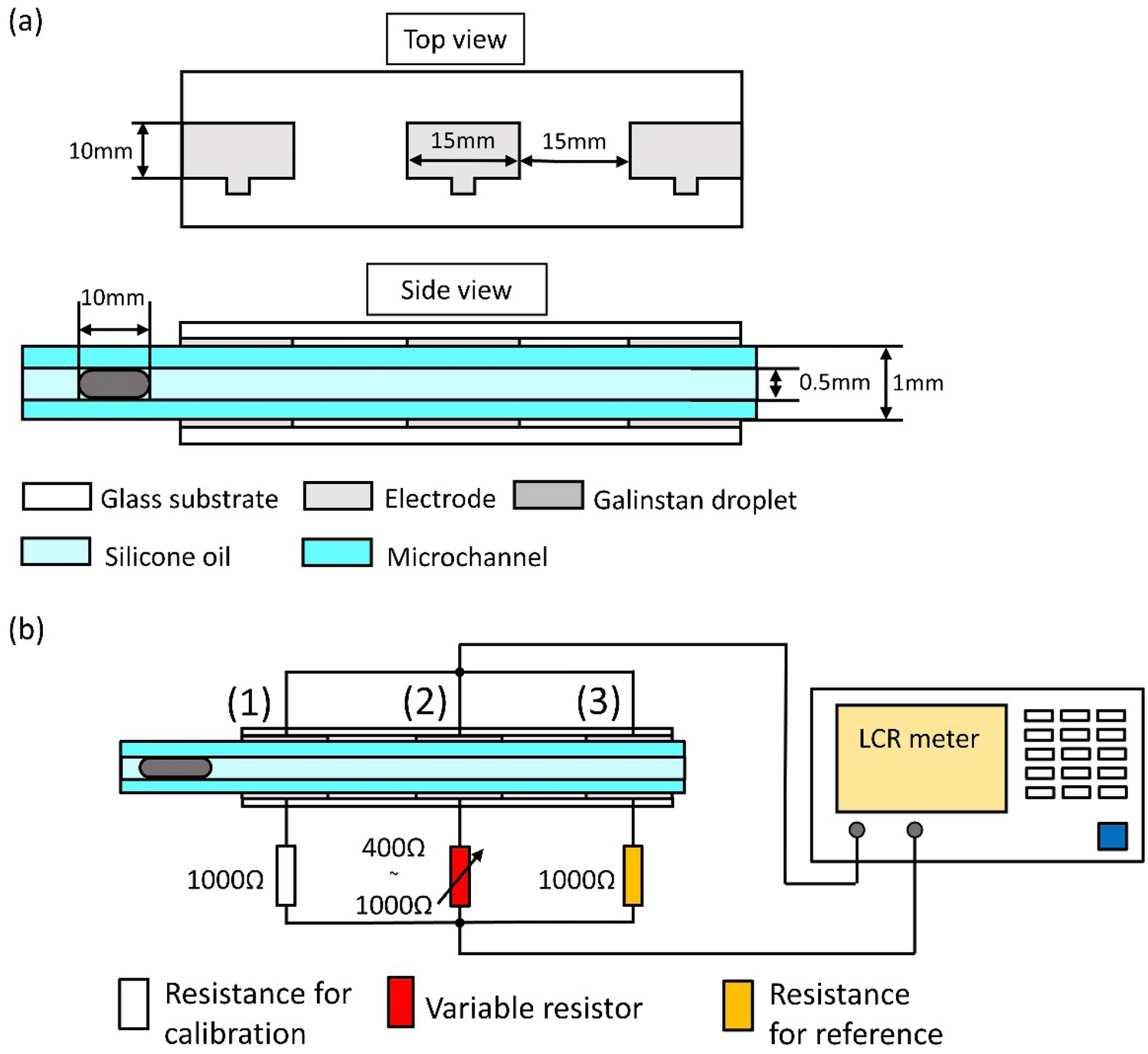

Experimental system for impedance measurement using model sensor. (a) The top view and the side view of multiplexer dimensions used in the experiment. (b) Circuit diagram of the experimental system.
Figure 3 | Scientific Reports
Experimental system for impedance measurement using model sensor. (a) The top view and the side view of multiplexer dimensions used in the experiment. (b) Circuit diagram of the experimental system.
