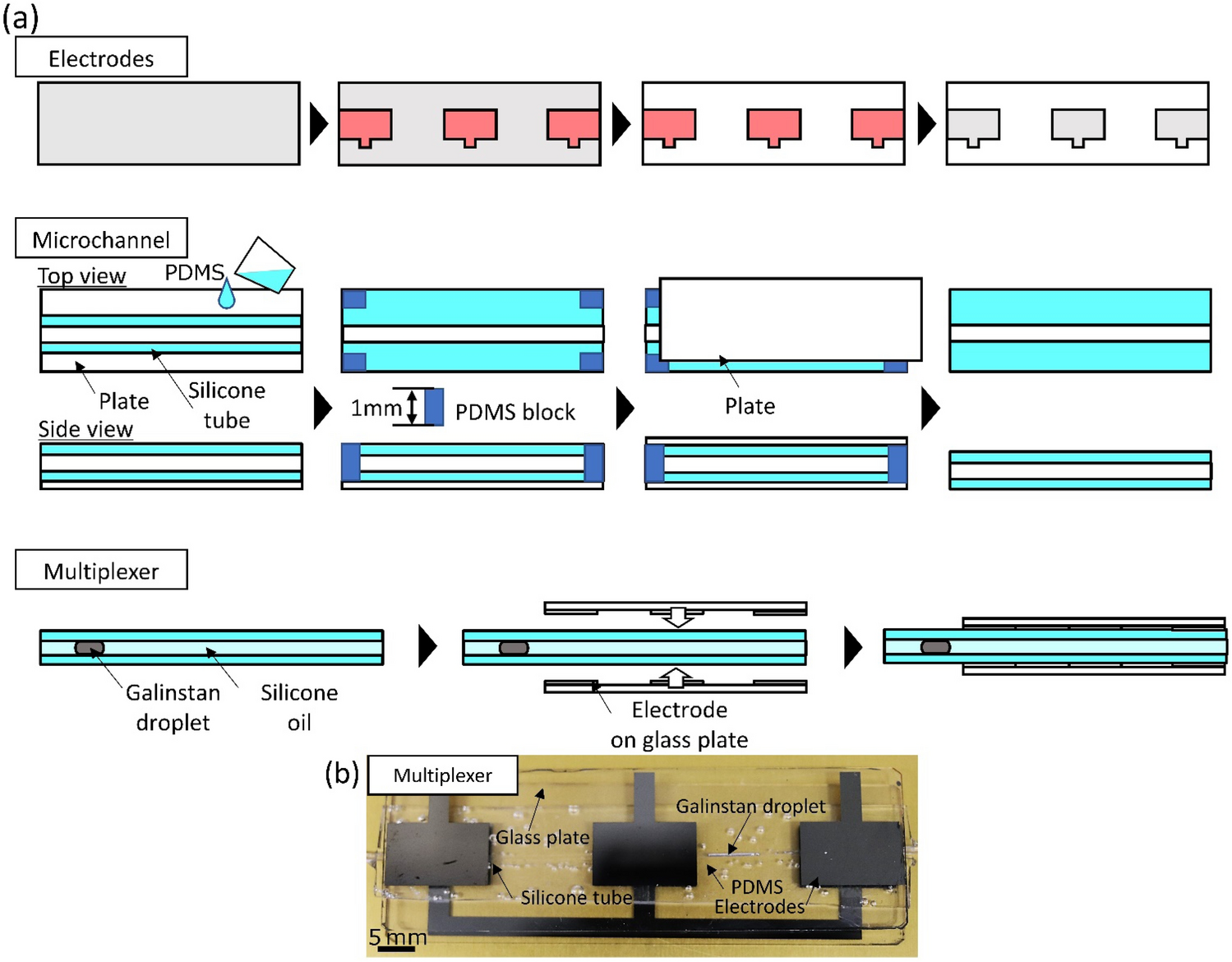

Figure 7
Fabrication process for microchannel sandwiched by pairs of electrodes. (a) Fabrication process of the multiplexer. We fabricated the electrodes and the microchannel, separately and sandwiched the microchannel between the electrodes. The gap and electrodes and the thickness of the microchannel is 1 mm. (b) A perspective photograph of the multiplexer. The scale bar indicates 5 mm.
